XGZP6886A Datasheet | CFSensor

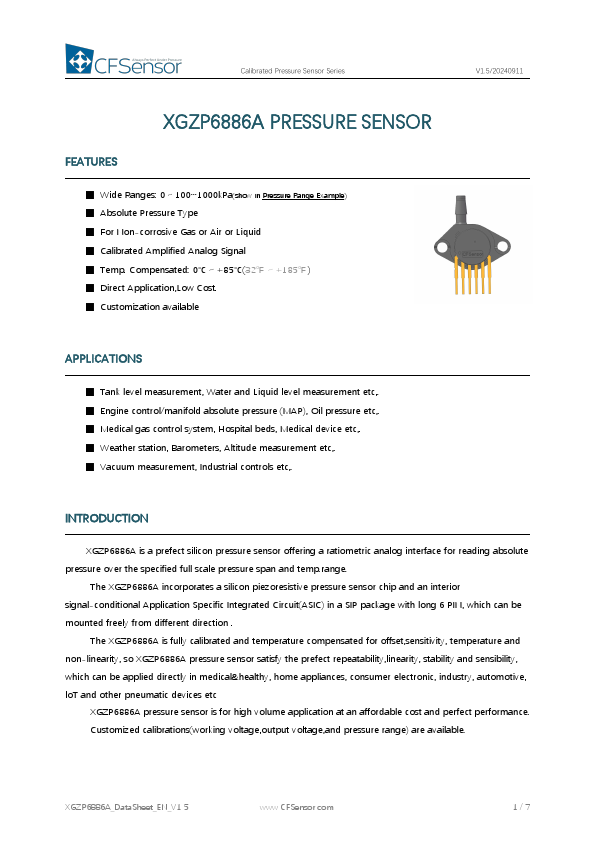

FEATURES - Wide Ranges: 0～100…1000k Pa(show in Pressure Range Example) - Absolute Pressure Type - For Non-corrosive Gas or Air or Liquid - Calibrated Amplified Analog Signal - Temp. pensated: 0℃～+85℃(32℉～+185℉) - Direct Application,Low Cost. - Customization available V1.5/20240911 APPLICATIONS - Tank level measurement, Water and Liquid level measurement etc,. - Engine control/manifold absolute pressure (MAP), Oil pressure etc,. - Medical gas control system, Hospital beds, Medical device etc,. - Weather station, Barometers, Altitude measurement etc,. - Vacuum measurement, Industrial controls etc,. INTRODUCTION XGZP6886A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading absolute pressure over the specified full scale pressure span and temp.range. The XGZP6886A incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SIP package with long 6 PIN, which can be mounted freely from different direction . The XGZP6886A is fully calibrated and temperature pensated for offset,sensitivity, temperature and non-linearity, so XGZP6886A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc XGZP6886A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available. XGZP6886A_Data Sheet_EN_V1.5 .CFSensor. 1/7 Calibrated Pressure Sensor Series V1.5/20240911 PERFORMANCE SPECIFICATION Unless otherwise specified, measurements were taken with a a temperature of 25±1℃ and humidity from 25%～85%RH CHARACTERISTIC MIN. TYP. UNIT Available Pressure Range① Power Supply② Current Consumption Output Range③ 5Vdc Power Supply 3.3Vdc Power Supply Total...
