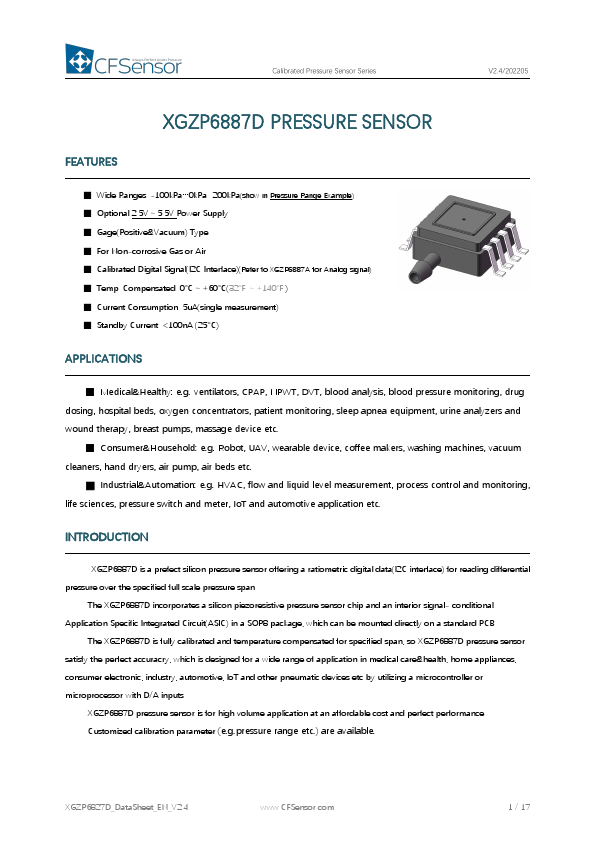

XGZP6887D Datasheet | CFSensor

FEATURES - Wide Ranges: -100k Pa…0k Pa…200k Pa(show in Pressure Range Example) - Optional 2.5V～5.5V Power Supply - Gage(Positive&Vacuum) Type - For Non-corrosive Gas or Air - Calibrated Digital Signal(I2C Interface)(Refer to XGZP6887A for Analog signal) - Temp. pensated: 0℃～+60℃(32℉～+140℉) - Current Consumption: 5u A(single measurement) - Standby Current: <100n A (25°C) APPLICATIONS - Medical&Healthy: e.g. ventilators, CPAP, NPWT, DVT, blood analysis, blood pressure monitoring, drug dosing, hospital beds, oxygen concentrators, patient monitoring, sleep apnea equipment, urine analyzers and wound therapy, breast pumps, massage device etc. - Consumer&Household: e.g. Robot, UAV, wearable device, coffee makers, washing machines, vacuum cleaners, hand dryers, air pump, air beds etc. - Industrial&Automation: e.g. HVAC, flow and liquid level measurement, process control and monitoring, life sciences, pressure switch and meter, Io T and automotive application etc. INTRODUCTION XGZP6887D is a prefect silicon pressure sensor offering a ratiometric digital data(I2C interface) for reading differential pressure over the specified full scale pressure span. The XGZP6887D incorporates a silicon piezoresistive pressure sensor chip and an interior signal- conditional Application Specific Integrated Circuit(ASIC) in a SOP8 package, which can be mounted directly on a standard PCB. The XGZP6887D is fully calibrated and temperature pensated for specified span, so XGZP6887D pressure sensor satisfy the perfect accuracry, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc by utilizing a microcontroller or microprocessor with D/A inputs. XGZP6887D pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (e.g.pressure range etc.) are available. XGZP6827D_Data Sheet_EN_V2.4 .CFSensor. 1 / 17 Calibrated Pressure...
