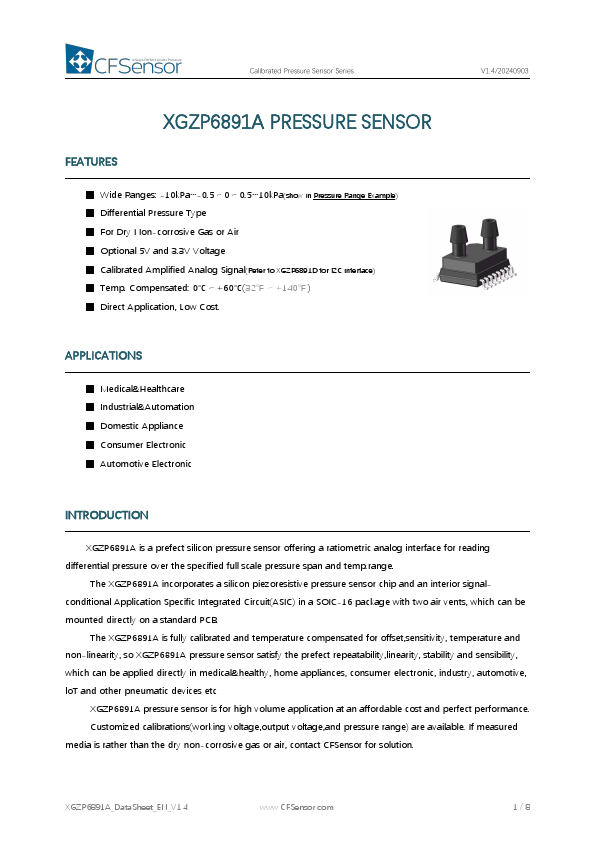

FEATURES - Wide Ranges: -10k Pa…-0.5～0～0.5…10k Pa(show in Pressure Range Example) - Differential Pressure Type - For Dry Non-corrosive Gas or Air - Optional 5V and 3.3V Voltage - Calibrated Amplified Analog Signal(Refer to XGZP6891D for I2C interface) - Temp. pensated: 0℃～+60℃(32℉～+140℉) - Direct Application, Low Cost. APPLICATIONS - Medical&Healthcare - Industrial&Automation - Domestic Appliance - Consumer Electronic - Automotive Electronic V1.4/20240903 INTRODUCTION XGZP6891A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading differential pressure over the specified full scale pressure span and temp.range. The XGZP6891A incorporates a silicon piezoresistive pressure sensor chip and an interior signalconditional Application Specific Integrated Circuit(ASIC) in a SOIC-16 package with two air vents, which can be mounted directly on a standard PCB. The XGZP6891A is fully calibrated and temperature pensated for offset,sensitivity, temperature and non-linearity, so XGZP6891A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc XGZP6891A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available. If measured media is rather than the dry non-corrosive gas or air, contact CFSensor for solution. XGZP6891A_Data Sheet_EN_V1.4 .CFSensor. 1/8 Calibrated Pressure Sensor Series V1.4/20240903 PERFORMANCE SPECIFICATION Unless otherwise specified, measurements were taken with a temperature of 25±1℃ and humidity from 25%～85%RH CHARACTERISTIC MIN. TYP. UNIT Available Pressure Range① -100…-0.5～0～0.5…200 k Pa Power...
