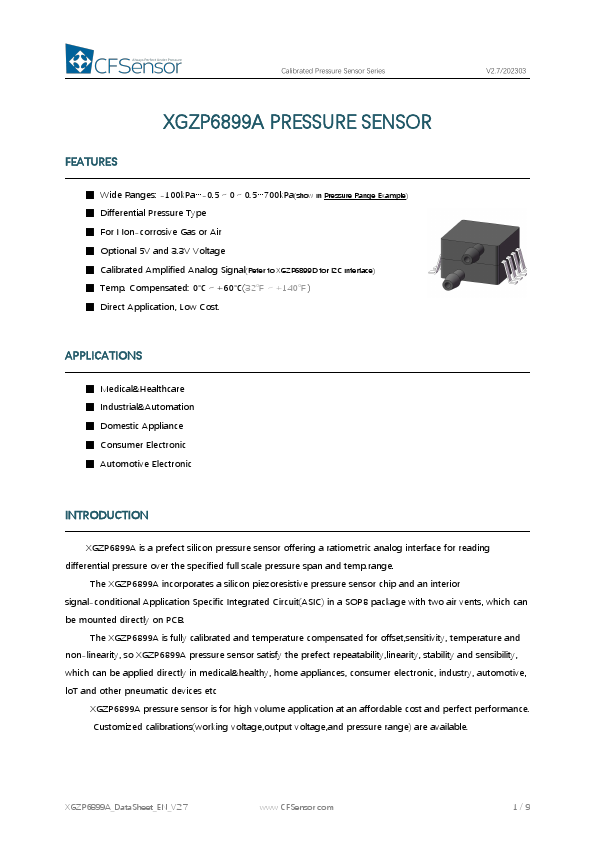

XGZP6899A
XGZP6899A is Calibrated Pressure Sensor manufactured by CFSensor.
FEATURES
- Wide Ranges: -100k Pa…-0.5～0～0.5…700k Pa(show in Pressure Range Example)
- Differential Pressure Type
- For Non-corrosive Gas or Air
- Optional 5V and 3.3V Voltage
- Calibrated Amplified Analog Signal(Refer to XGZP6899D for I2C interface)
- Temp. pensated: 0℃～+60℃(32℉～+140℉)
- Direct Application, Low Cost.
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
V2.7/202303
INTRODUCTION
XGZP6899A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading differential pressure over the specified full scale pressure span and temp.range.
The XGZP6899A incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SOP8 package with two air vents, which can be mounted directly on PCB.
The XGZP6899A is fully calibrated and temperature pensated for offset,sensitivity, temperature and non-linearity, so XGZP6899A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, lo T and other pneumatic devices etc
XGZP6899A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations(working voltage,output voltage,and pressure range) are available.
XGZP6899A_Data Sheet_EN_V2.7
.CFSensor.
1/9
Calibrated Pressure Sensor Series
V2.7/202303

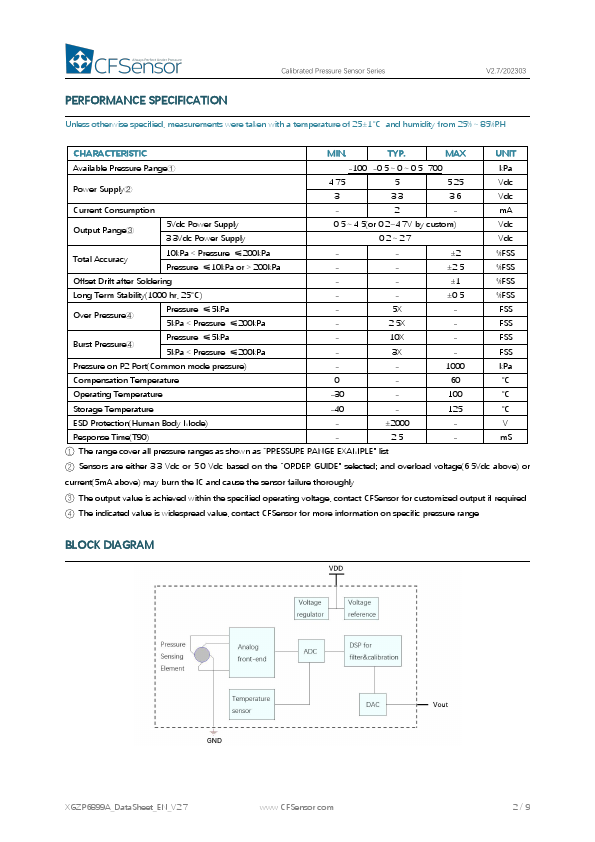

PERFORMANCE SPECIFICATION
Unless otherwise specified, measurements were taken with a temperature of 25±1℃ and humidity from 25%～85%RH
CHARACTERISTIC
MIN.
TYP.
UNIT
Available Pressure Range①
-100…-0.5～0～0.5…700 k Pa
Power...
