XGZT2614 Datasheet Thermopile Sensor

Manufacturer: CFSensor

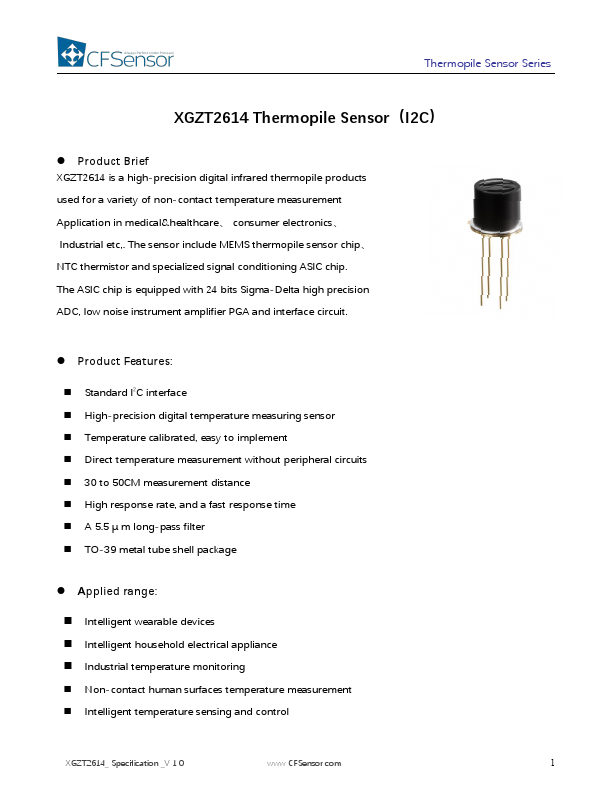

Overview: Thermopile Sensor Series XGZT2614 Thermopile Sensor（I2C）  Product Brief XGZT2614 is a high-precision digital infrared thermopile products used for a variety of non-contact temperature measurement Application in medical&healthcare、 consumer electronics、 Industrial etc,. The sensor include MEMS thermopile sensor chip、 NTC thermistor and specialized signal conditioning ASIC chip. The ASIC chip is equipped with 24 bits Sigma-Delta high precision ADC, low noise instrument amplifier PGA and interface circuit.

Datasheet Details

Part number XGZT2614
Manufacturer CFSensor
File Size 618.08 KB
Description Thermopile Sensor
Datasheet XGZT2614-CFSensor.pdf

Key Features

  • Standard I2C interface.
  • High-precision digital temperature measuring sensor.
  • Temperature calibrated, easy to implement.
  • Direct temperature measurement without peripheral circuits.
  • 30 to 50CM measurement distance.
  • High response rate, and a fast response time.
  • A 5.5 μ m long-pass filter.
  • TO-39 metal tube shell package.
  • Applied range:.
  • Intelligent wearable devices.
  • Intelligent household electrical appliance.
  • Industrial temperature monito.
