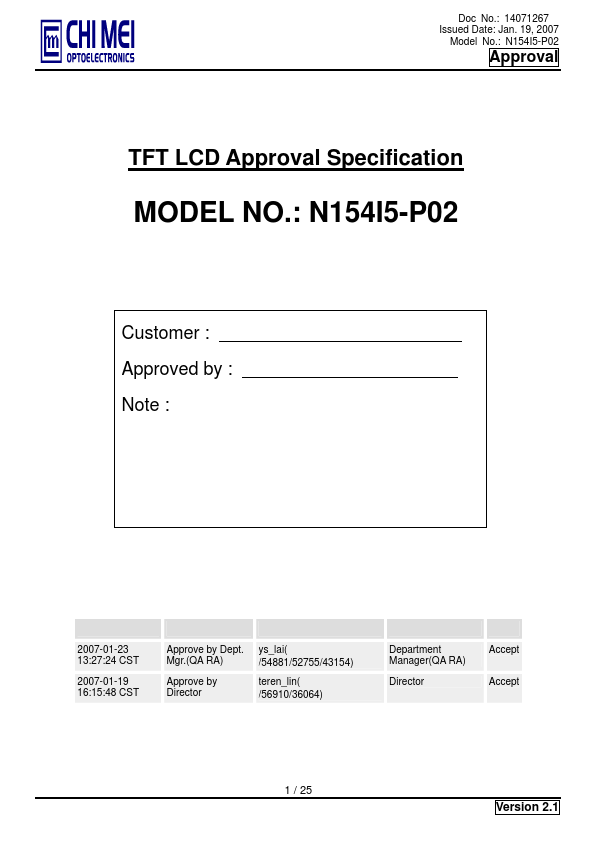

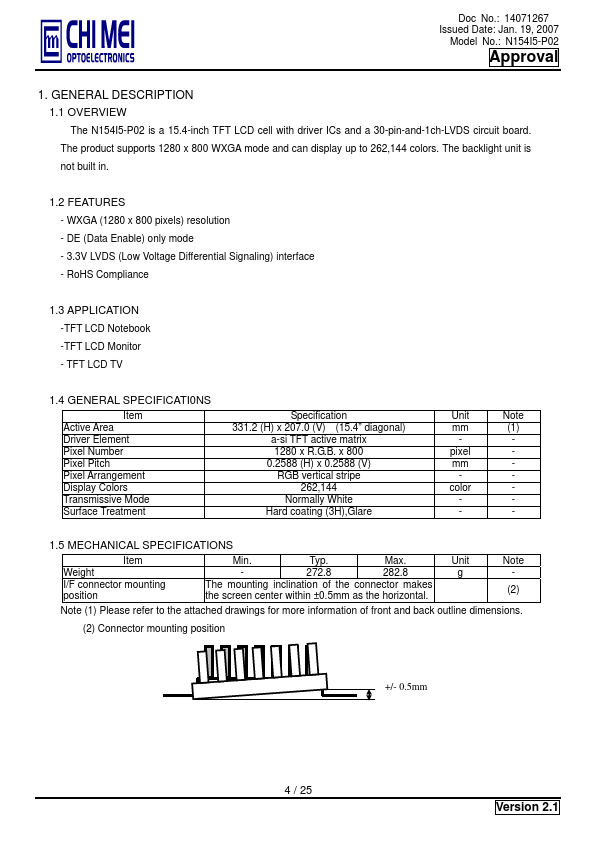

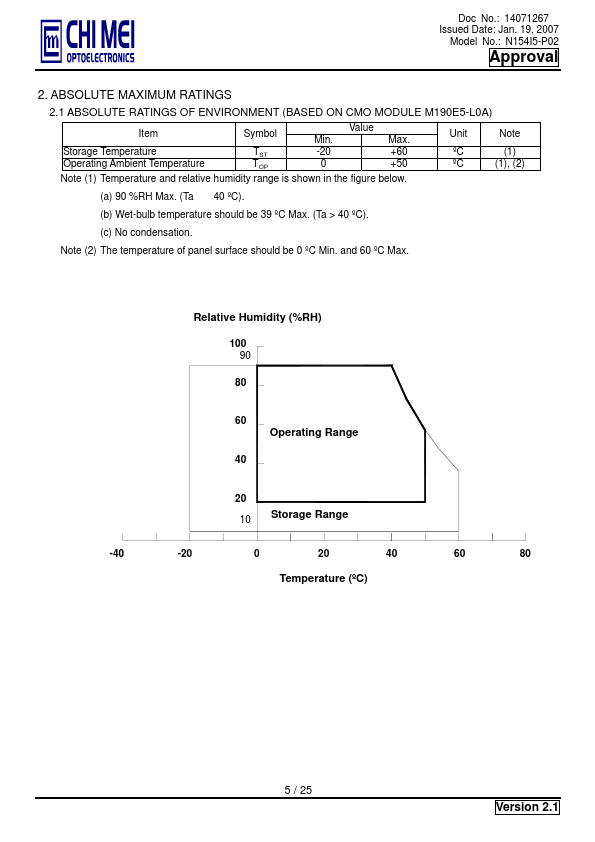

Doc No.: 14071267 Issued Date: Jan. 19, 2007 Model No.: N154I5-P02 Approval TFT LCD Approval Specification MODEL NO.: N154I5-P02 Customer : Approved by : Note : 2007-01-23 13:27:24 CST 2007-01-19 16:15:48 CST Approve by Dept. Mgr.(QA RA) Approve by Director ys_lai( /54881/52755/43154) teren_lin( /56910/36064) Department Manager(QA RA) Director Accept Accept 1 / 25 Version 2.1 Doc No.: 14071267 Issued Date: Jan. 19, 2007 Model No.: N154I5-P02 Approval 1. GENERAL DESCRIPTION 1.1 OVERVIEW The N154I5-P02 is a 15.4-inch TFT LCD cell with driver ICs and a 30-pin-and-1ch-LVDS circuit board. The product supports 1280 x 800 WXGA mode and can display up to 262,144 colors. The backlight unit is not built in. 1.2 Features - WXGA (1280 x 800 pixels) resolution - DE (Data Enable) only mode - 3.3V LVDS (Low Voltage Differential Signaling) interface - Ro HS pliance 1.3 APPLICATION -TFT LCD Notebook -TFT LCD Monitor - TFT LCD TV 1.4 GENERAL SPECIFICATI0NS Item Active Area Driver Element Pixel Number Pixel Pitch Pixel Arrangement Display Colors Transmissive Mode Surface...
