M170EGE-L20
M170EGE-L20 is TFT LCD manufactured by Chi Mei.

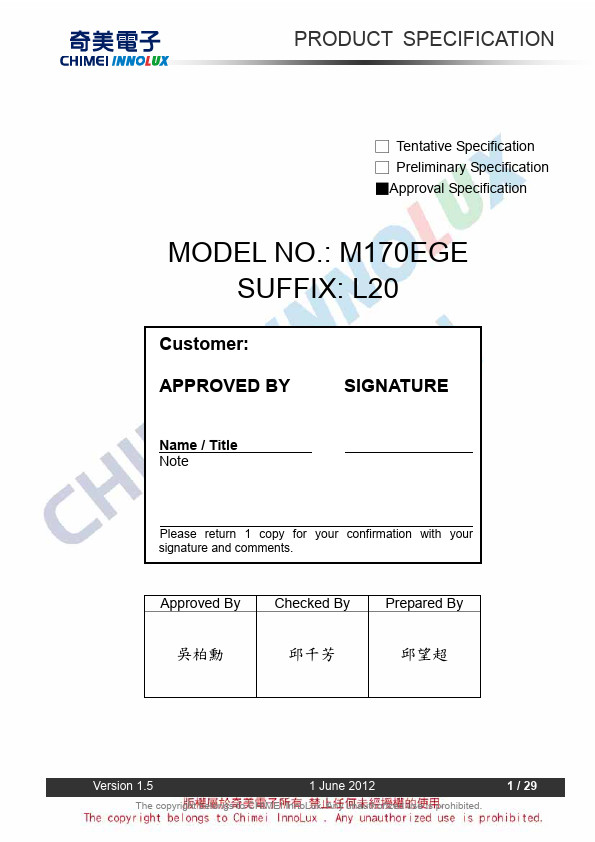

PRODUCT SPECIFICATION
- Tentative Specification
- Preliminary Specification
- Approval Specification
MODEL NO.: M170EGE SUFFIX: L20
Customer: APPROVED BY
SIGNATURE
Name / Title Note
Please return 1 copy for your confirmation with your signature and ments.
Approved By Checked By Prepared By
吳柏勳
邱千芳
邱望超
Version 1.5
1 June 2012
The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited.
1 / 29

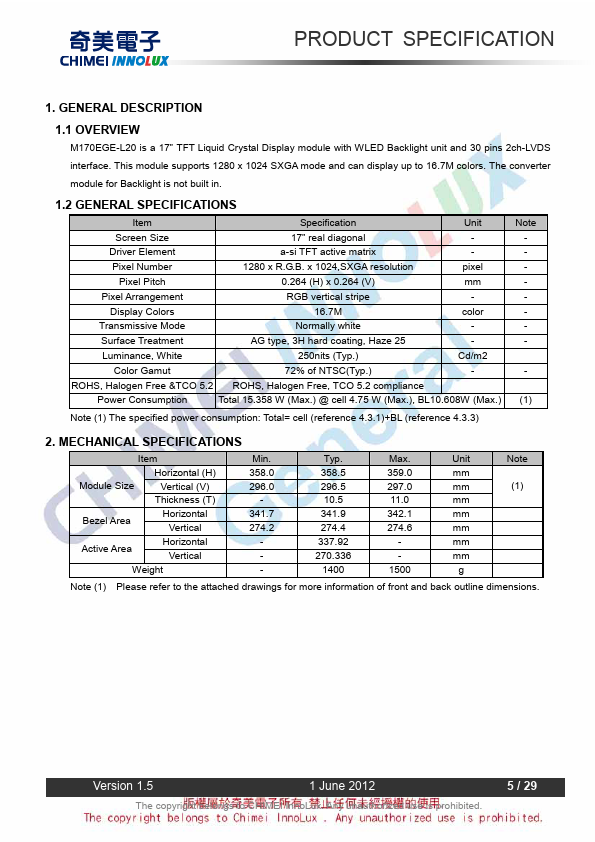

PRODUCT SPECIFICATION
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M170EGE-L20 is a 17” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 2ch-LVDS interface. This module supports 1280 x 1024 SXGA mode and can display up to 16.7M colors. The converter module...
