N101LGE-L11 Datasheet | Chi Mei

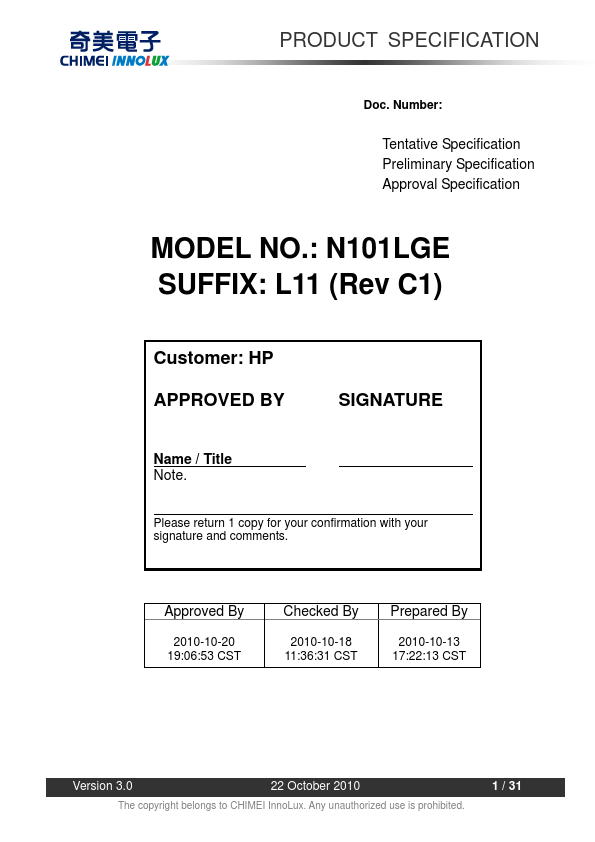

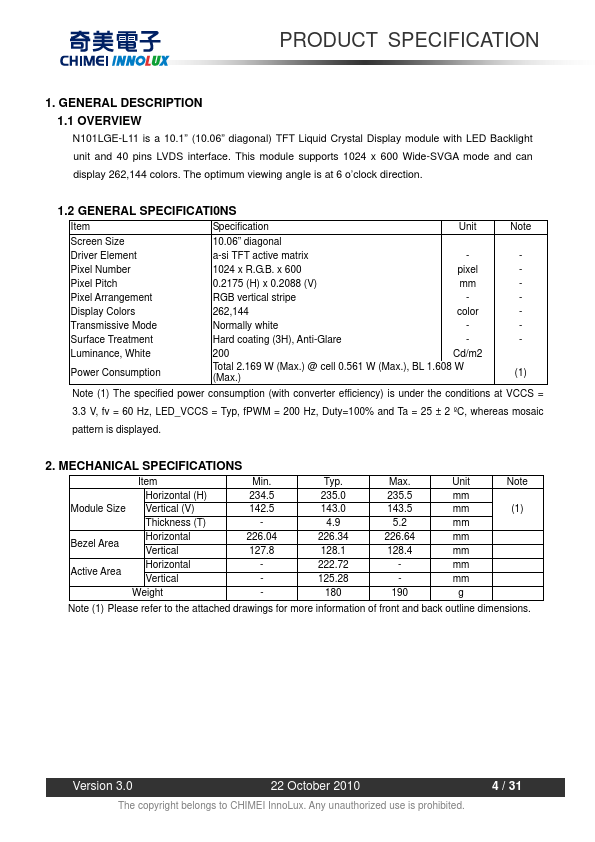

PRODUCT SPECIFICATION Doc. Number: Tentative Specification Preliminary Specification Approval Specification MODEL NO.: N101LGE SUFFIX: L11 (Rev C1) Customer: HP APPROVED BY SIGNATURE Name / Title Note. Please return 1 copy for your confirmation with your signature and ments. Approved By 2010-10-20 19:06:53 CST Checked By 2010-10-18 11:36:31 CST Prepared By 2010-10-13 17:22:13 CST Version 3.0 22 October 2010 The copyright belongs to CHIMEI Inno Lux. Any unauthorized use is prohibited. 1 / 31 PRODUCT SPECIFICATION 1. GENERAL DESCRIPTION 1.1 OVERVIEW N101LGE-L11 is a 10.1” (10.06” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1024 x 600 Wide-SVGA mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. 1.2 GENERAL SPECIFICATI0NS Item Specification Unit Note Screen Size 10.06” diagonal Driver Element a-si TFT active matrix -...
