N140BGE-L42 Datasheet | Chi Mei

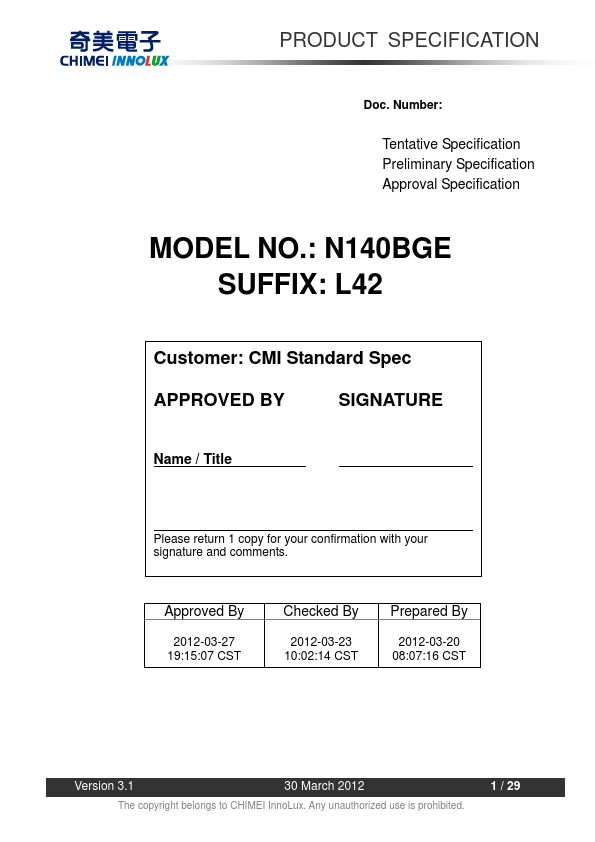

PRODUCT SPECIFICATION Doc. Number: Tentative Specification Preliminary Specification Approval Specification MODEL NO.: N140BGE SUFFIX: L42 Customer: CMI Standard Spec APPROVED BY SIGNATURE Name / Title Please return 1 copy for your confirmation with your signature and ments. Approved By 2012-03-27 19:15:07 CST Checked By 2012-03-23 10:02:14 CST Prepared By 2012-03-20 08:07:16 CST Version 3.1 30 March 2012 The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited. 1 / 29 PRODUCT SPECIFICATION 1. GENERAL DESCRIPTION 1.1 OVERVIEW N140BGE-L42 is a 14.0” (14.0” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface....
