CSC01
Description

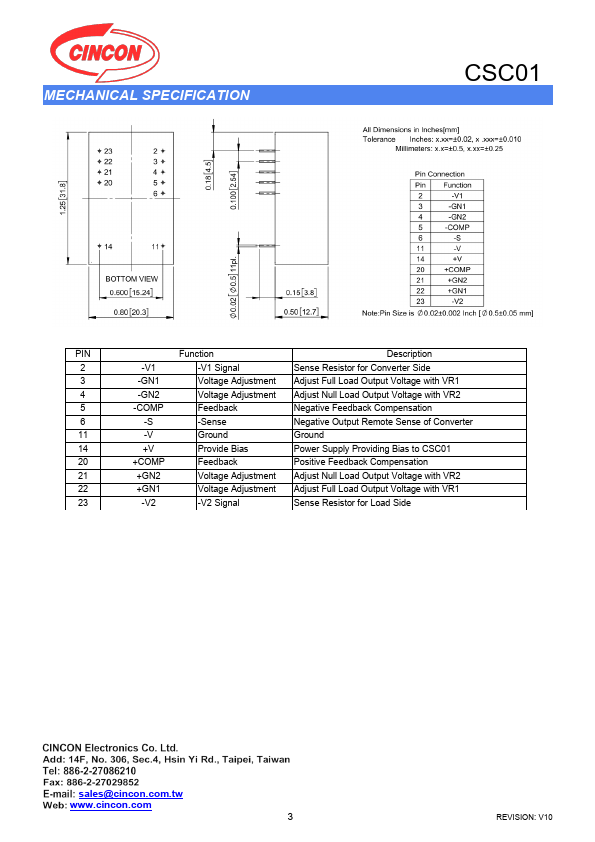

2 -V1 -V1 Signal Sense Resistor for Converter Side 3 -GN1 Voltage Adjustment Adjust Full Load Output Voltage with VR1 4 -GN2 Voltage Adjustment Adjust Null Load Output Voltage with VR2 5 -P Feedback Negative Feedback pensation 6 -S -Sense Negative Output Remote Sense of Converter 11 -V Ground Ground 14 +V Provide Bias Power Supply Providing Bias to CSC01 20 +P Feedback Positive Feedback pensation 21 +GN2 Voltage Adjustment Adjust Null Load Output Voltage with VR2 22 +GN1 Voltage Adjustment Adjust Full Load Output Voltage with VR1 23 -V2 -V2 Signal Sense Resistor for Load Side sales@cincon..tw .cincon.

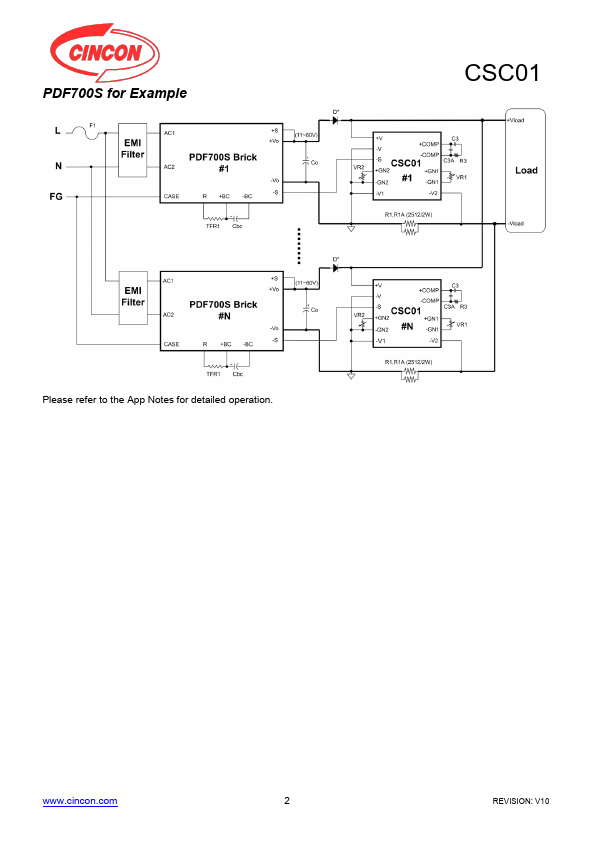

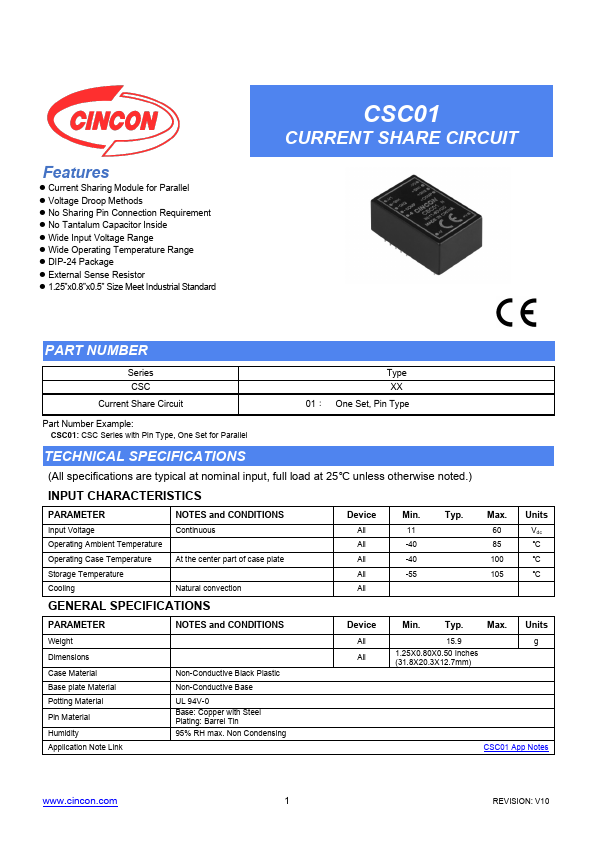

Key Features
- Current Sharing Module for Parallel
- Voltage Droop Methods
- No Sharing Pin Connection Requirement
- No Tantalum Capacitor Inside
- Wide Input Voltage Range
- Wide Operating Temperature Range
- DIP-24 Package
- External Sense Resistor
