N141C1-L05
N141C1-L05 is TFT LCD manufactured by CMI MEI.

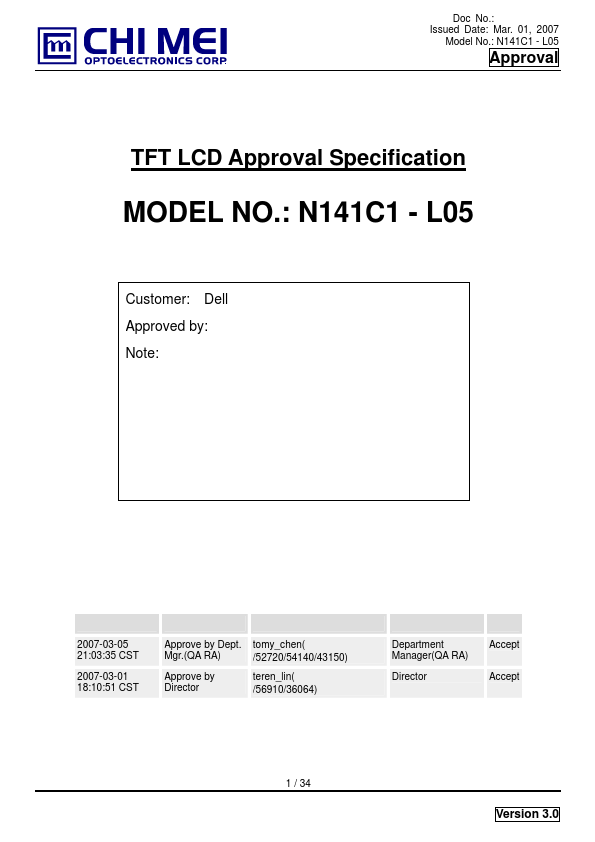

Doc No.: Issued Date: Mar. 01, 2007
Model No.: N141C1
- L05
Approval
TFT LCD Approval Specification
MODEL NO.: N141C1
- L05
Customer: Dell Approved by: Note:
2007-03-05 21:03:35 CST
2007-03-01 18:10:51 CST
Approve by Dept. tomy_chen(
Mgr.(QA RA)
/52720/54140/43150)
Approve by Director teren_lin( /56910/36064)
Department Manager(QA RA)
Director
Accept Accept
1 / 34
Version 3.0
Doc No.: Issued Date: Mar. 01, 2007
Model No.: N141C1
- L05
Approval

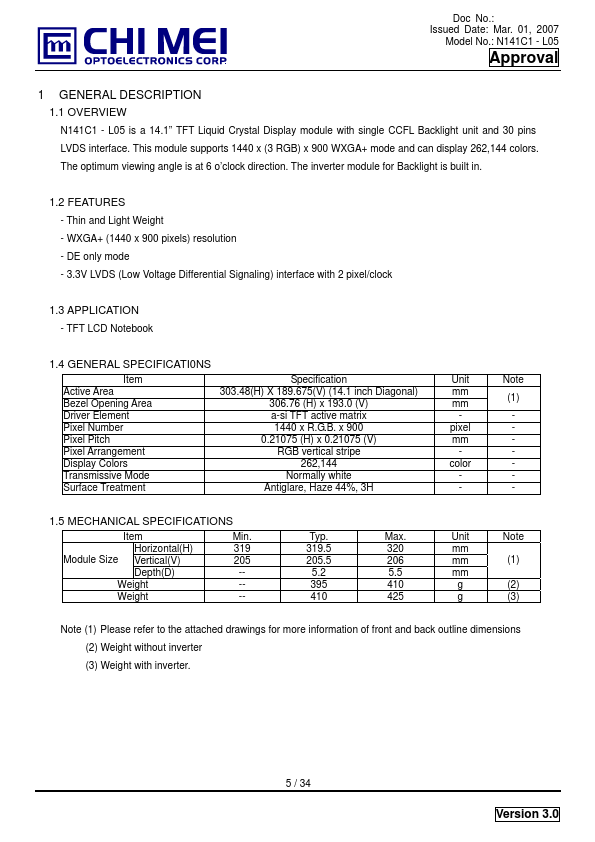

1 GENERAL DESCRIPTION
1.1 OVERVIEW N141C1
- L05 is a 14.1” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins LVDS interface. This module supports 1440 x (3 RGB) x 900 WXGA+ mode and can display 262,144 colors....
