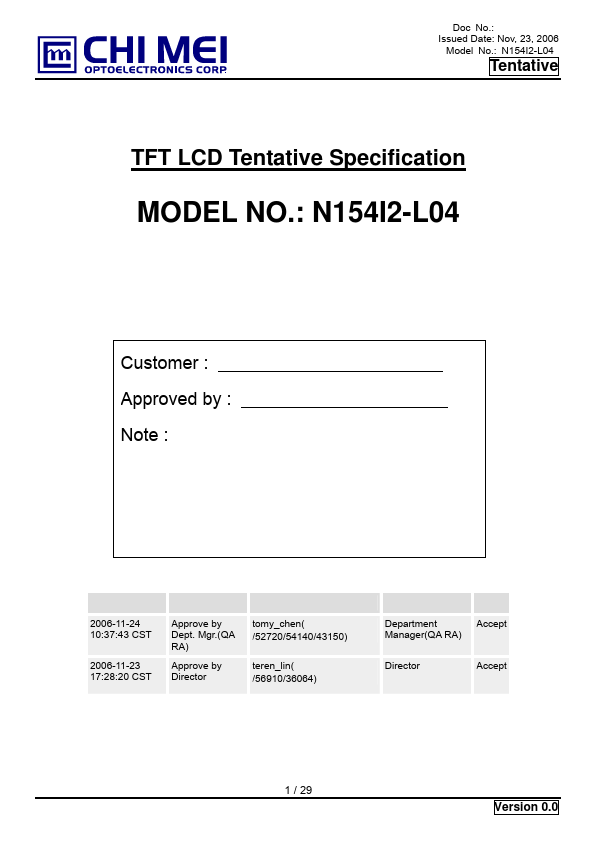

Doc No.: Issued Date: Nov, 23, 2006 Model No.: N154I2-L04 Tentative TFT LCD Tentative Specification MODEL NO.: N154I2-L04 Customer : Approved by : Note : 2006-11-24 10:37:43 CST 2006-11-23 17:28:20 CST Approve by Dept. Mgr.(QA RA) Approve by Director tomy_chen( /52720/54140/43150) teren_lin( /56910/36064) Department Accept Manager(QA RA) Director Accept 1 / 29 Version 0.0 Doc No.: Issued Date: Nov, 23, 2006 Model No.: N154I2-L04 Tentative 1. GENERAL DESCRIPTION 1.1 OVERVIEW N154I2-L05 is a 15.4” TFT Liquid Crystal Display module with single CCFL Backlight unit and 30 pins LVDS interface. This module supports 1280 x 800 Wide-XGA mode and can display 262,144 colors. The optimum...
