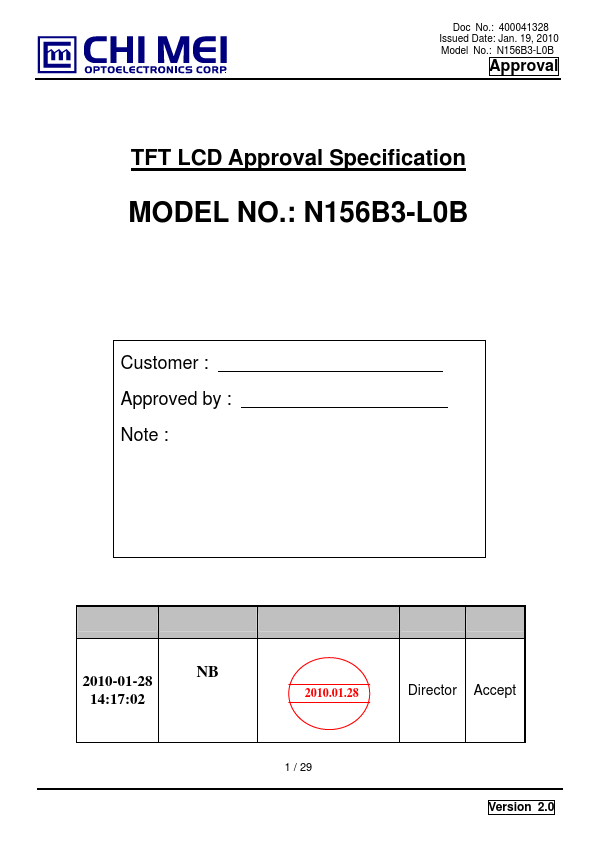

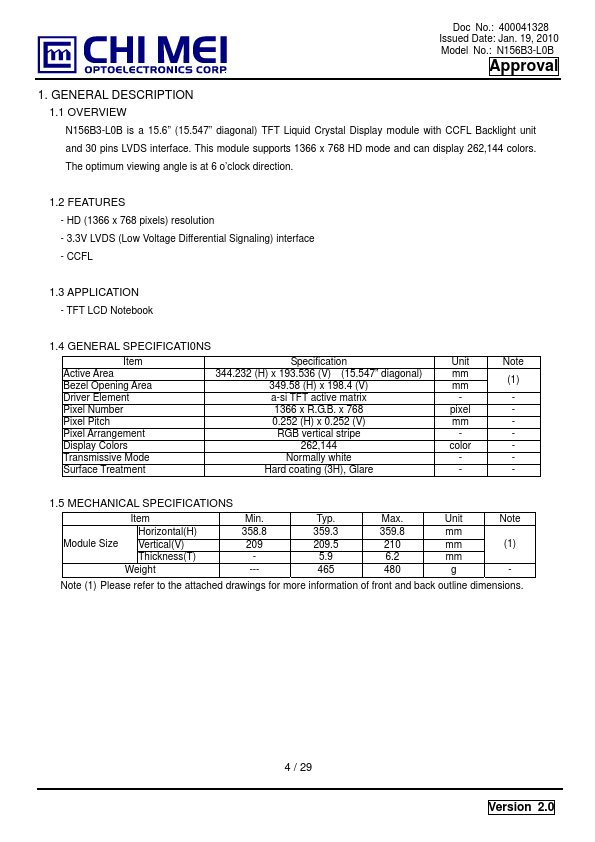

Doc No.: 400041328 Issued Date: Jan. 19, 2010 Model No.: N156B3-L0B Approval TFT LCD Approval Specification MODEL NO.: N156B3-L0B Customer : Approved by : Note : 2010-01-28 14:17:02 Director Accept 1 / 29 Version 2.0 Doc No.: 400041328 Issued Date: Jan. 19, 2010 Model No.: N156B3-L0B Approval 1. GENERAL DESCRIPTION 1.1 OVERVIEW N156B3-L0B is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with CCFL Backlight unit and 30 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction. 1.2 Features - HD (1366 x 768 pixels) resolution - 3.3V LVDS (Low Voltage Differential...
