Datasheet Summary
Issued Date: Jan. 20, 2010 Model No.: N156B6-L10
Approval

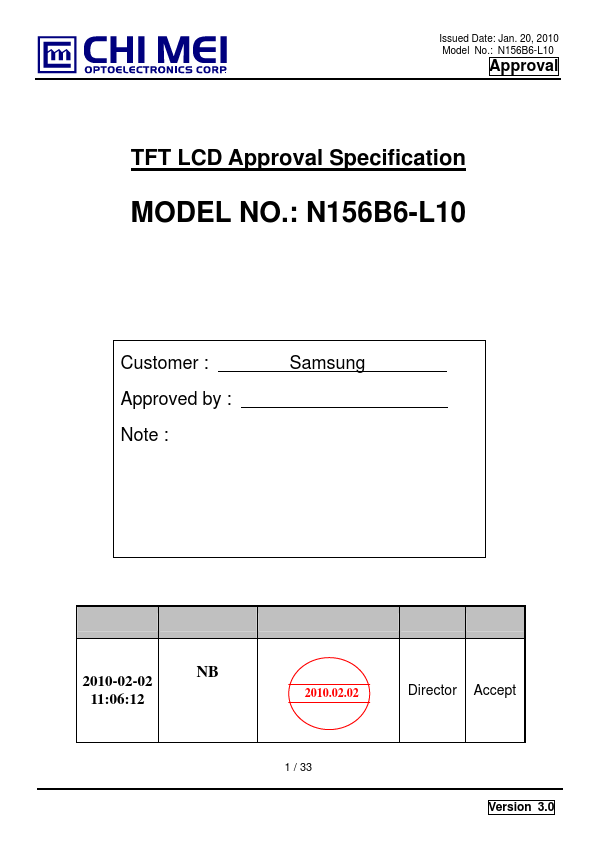

TFT LCD Approval Specification
MODEL NO.: N156B6-L10
Customer : Approved by : Note :
Samsung
2010-02-02
11:06:12
Director Accept
1 / 33
Version 3.0
Issued Date: Jan. 20, 2010 Model No.: N156B6-L10
Approval

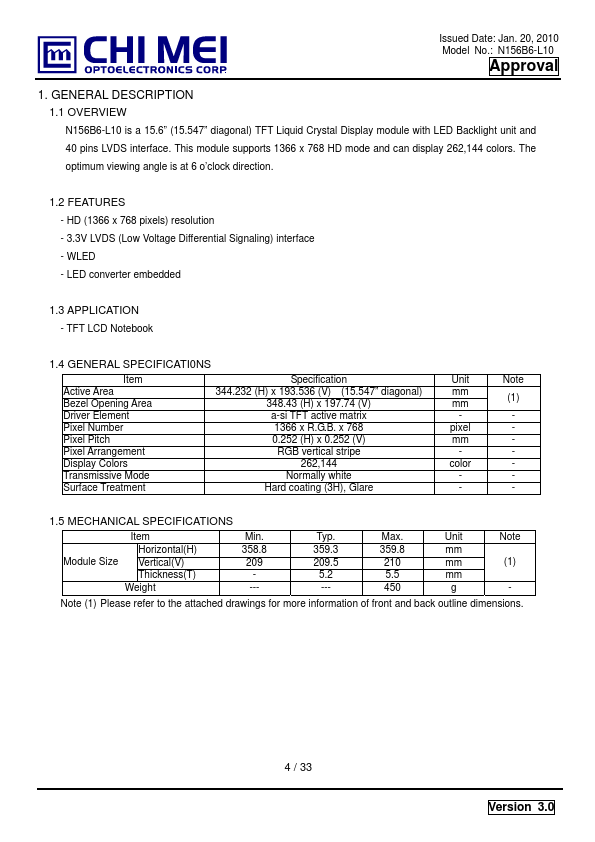

1. GENERAL DESCRIPTION
1.1 OVERVIEW N156B6-L10 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 Features
- HD (1366 x 768 pixels) resolution
- 3.3V LVDS (Low Voltage Differential Signaling) interface
- WLED
- LED...
