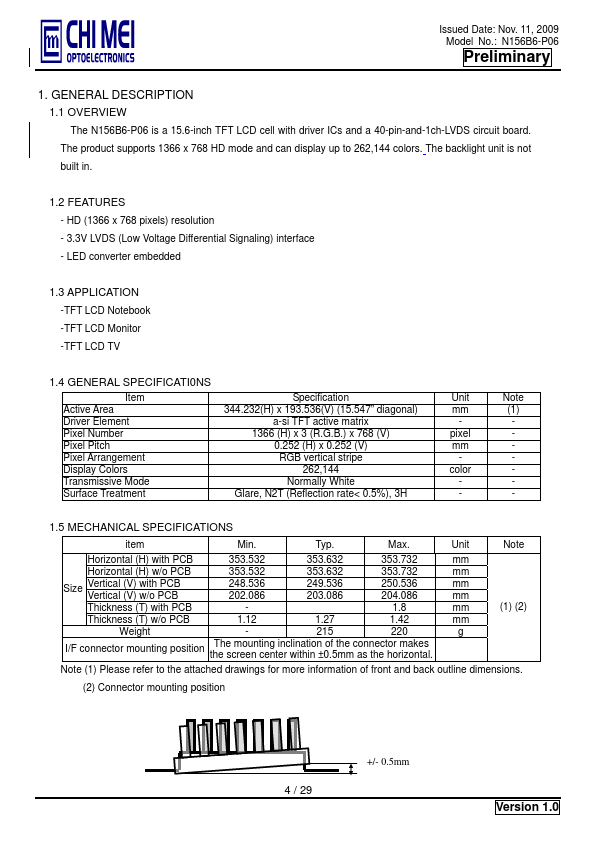

Issued Date: Nov. 11, 2009 Model No.: N156B6-P06 Preliminary TFT LCD Preliminary Specification MODEL NO.: N156B6-P06 Customer: Approved by: Note: To Be Approved by System. 2009-11-20 08:22:42 Director Accept 1 / 29 Version 1.0 Issued Date: Nov. 11, 2009 Model No.: N156B6-P06 Preliminary 1. GENERAL DESCRIPTION 1.1 OVERVIEW The N156B6-P06 is a 15.6-inch TFT LCD cell with driver ICs and a 40-pin-and-1ch-LVDS circuit board. The product supports 1366 x 768 HD mode and can display up to 262,144 colors. The backlight unit is not built in. 1.2 Features - HD (1366 x 768 pixels) resolution - 3.3V LVDS (Low Voltage Differential Signaling) interface - LED converter...
