KP3020 - 8PIN PHOTOTRANSISTOR PHOTOCOUPLER

Product Overview

COSMO Electronics

Part number	KP3020
Manufacturer	COSMO Electronics
File Size	247.54 KB
Description	8PIN PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	KP3020 Datasheet

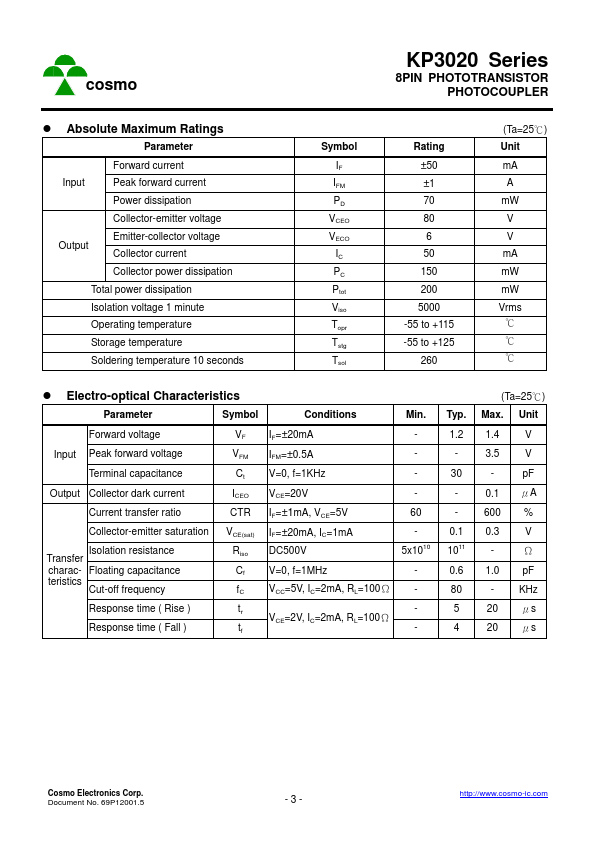

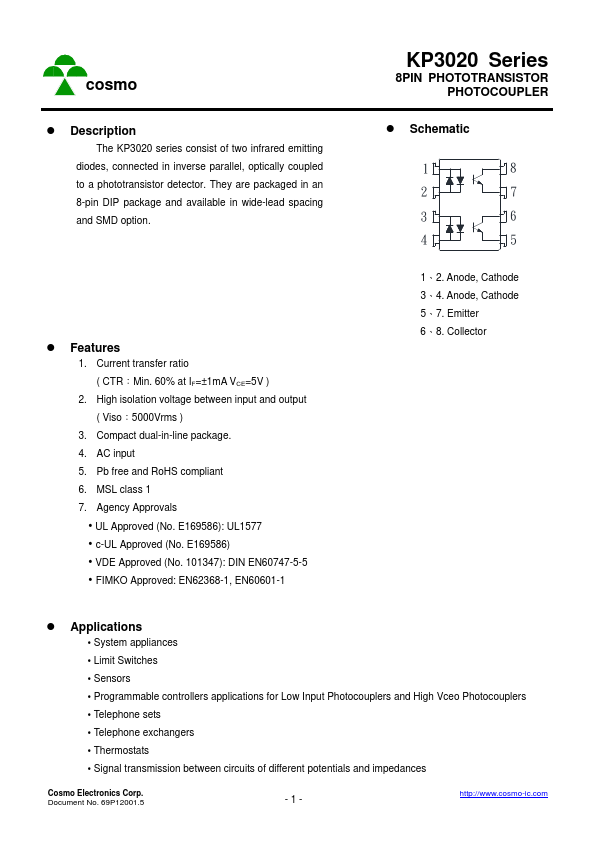

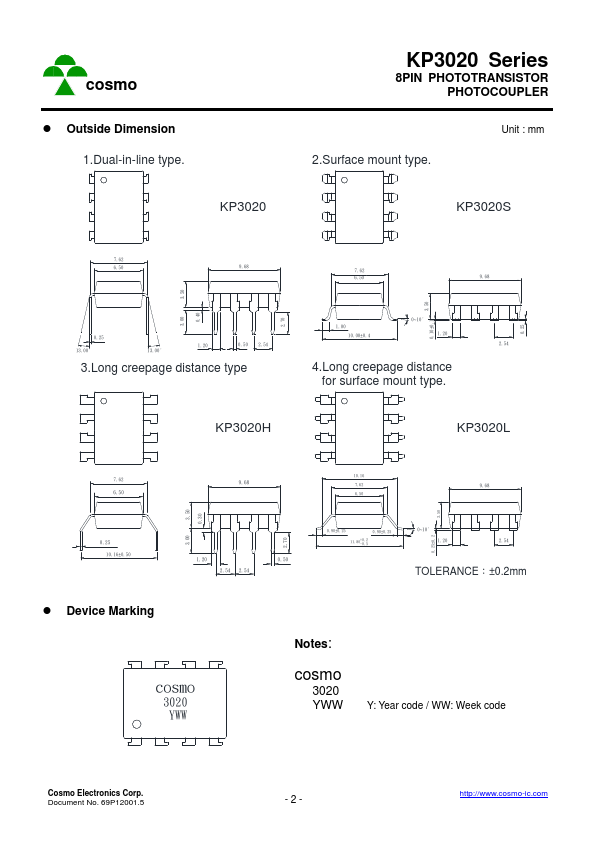

Additional preview pages of the KP3020 datasheet.

The KP3020 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector.

They are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD option.

Schematic 1

s 1. Current transfer ratio ( CTR：Min. 60% at IF=±1mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Compact dual-in-line package. 4. AC input 5. Pb free and RoHS compliant 6. MSL class 1 7. Agency Approvals.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
VDE Approved (No. 101347): DIN EN60747-5-5.
FIMKO Approved: EN62368-1, EN60601-1 1、2. Anode, Cathode 3、4. Anode, Cathode 5、7. Emitter 6、8. Collector.
