KPC410 Datasheet PDF (5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER)

KPC410 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Description

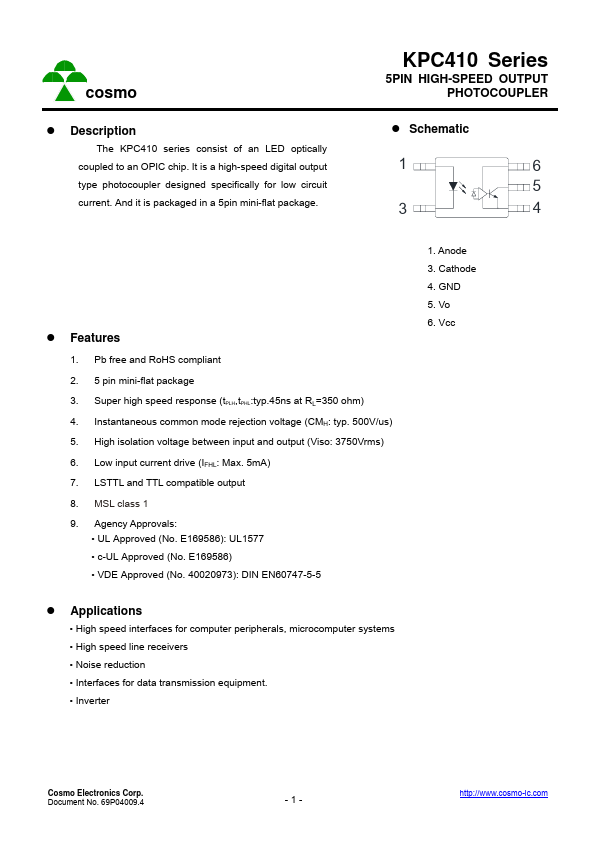

The KPC410 series consist of an LED optically coupled to an OPIC chip.

It is a high-speed digital output type photocoupler designed specifically for low circuit current.

And it is packaged in a 5pin mini-flat package.

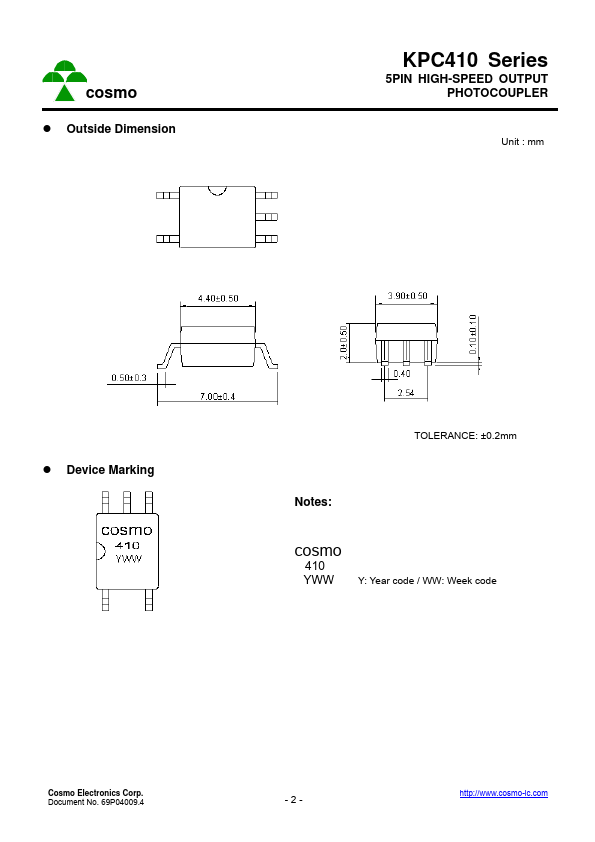

Features

1. Pb free and RoHS compliant 2. 5 pin mini-flat package 3. Super high speed response (tPLH,tPHL:typ.45ns at RL=350 ohm) 4. Instantaneous common mode rejection voltage (CMH: typ. 500V/us) 5. High isolation voltage between input and output (Viso: 3750Vrms) 6. Low input current drive (IFHL: Max. 5mA) 7. LSTTL and TTL compatible output 8. MSL class 1 9. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
VDE Approved (No. 40020973): DIN EN60.

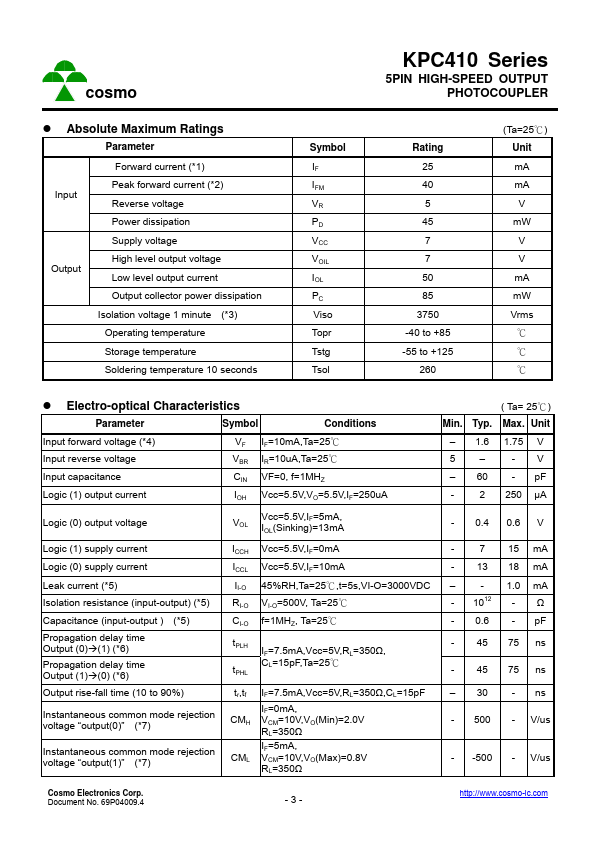

Datasheet Details

Part number	KPC410
Manufacturer	COSMO Electronics
File Size	221.58 KB
Description	5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
Datasheet	KPC410 Datasheet
