KPC4N33 - 6PIN PHOTODARLINGTON PHOTOCOUPLER

Description

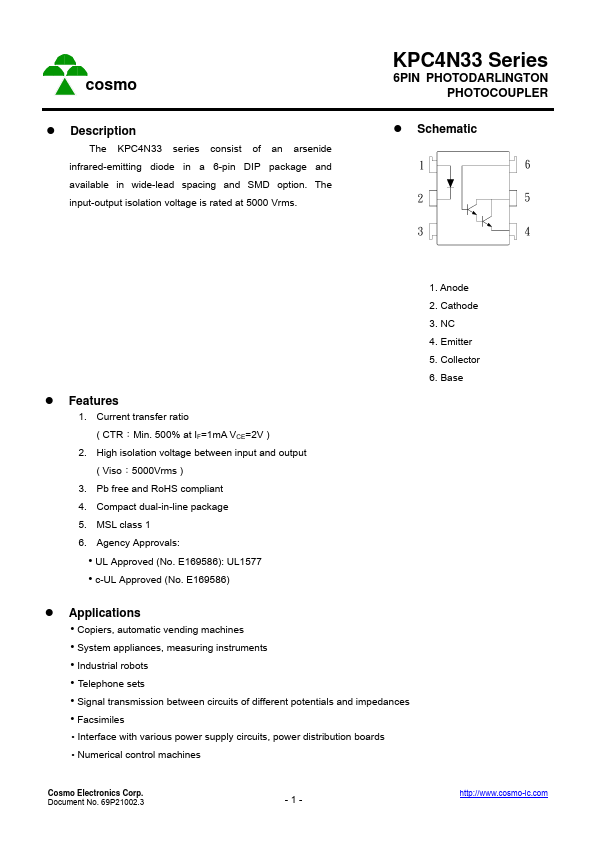

The KPC4N33 series consist of an arsenide infrared-emitting diode in a 6-pin DIP package and available in wide-lead spacing and SMD option.

The input-output isolation voltage is rated at 5000 Vrms.

Features

  • 1. Current transfer ratio ( CTR：Min. 500% at IF=1mA VCE=2V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Compact dual-in-line package 5. MSL class 1 6. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586) 1. Anode 2. Cathode 3. NC 4. Emitter 5. Collector 6. Base z.

📥 Download Datasheet

Datasheet preview – KPC4N33

Datasheet Details

Part number KPC4N33
Manufacturer COSMO Electronics
File Size 296.15 KB
Description 6PIN PHOTODARLINGTON PHOTOCOUPLER
Datasheet download datasheet KPC4N33 Datasheet

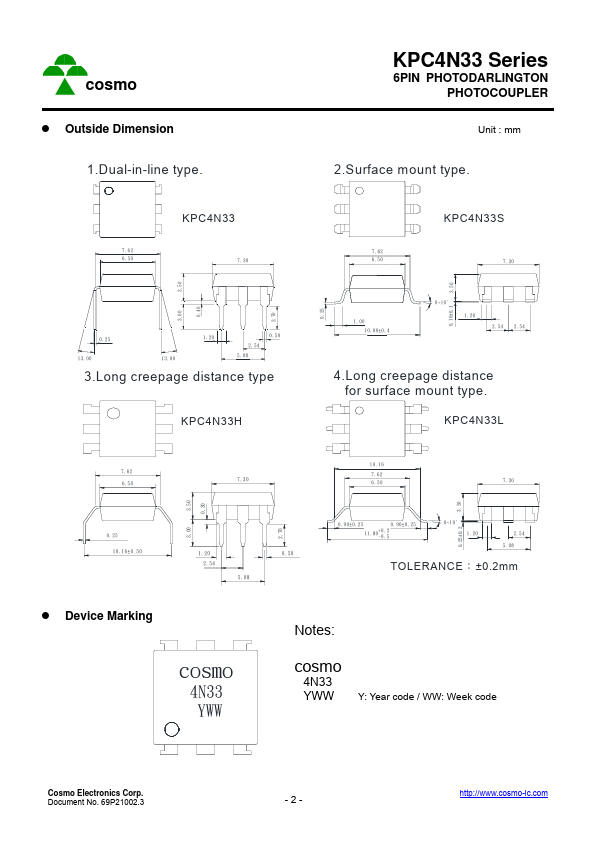

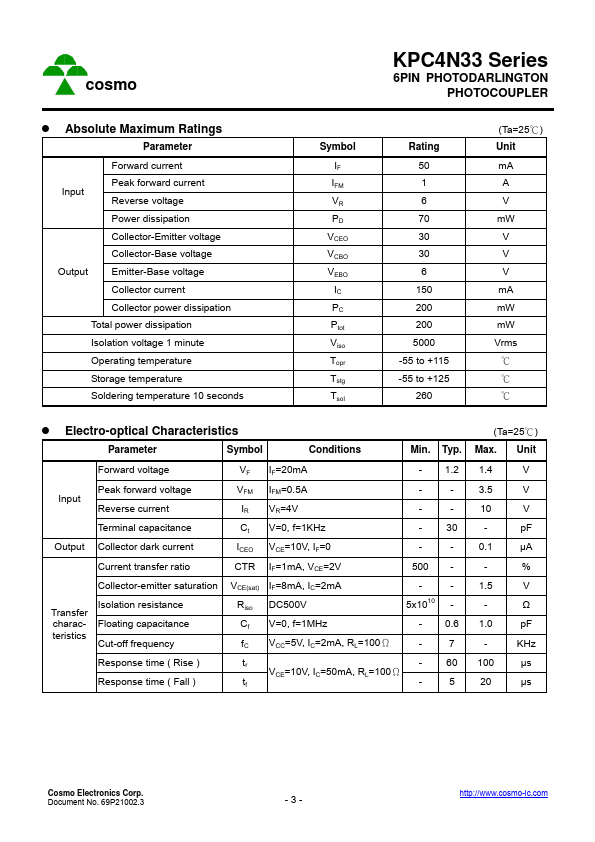

Additional preview pages of the KPC4N33 datasheet.

📁 Similar Datasheet

Other Datasheets by COSMO Electronics
  • KPC410 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
  • KPC452 - 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER
  • KPC457 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text
cosmo z Description The KPC4N33 series consist of an arsenide infrared-emitting diode in a 6-pin DIP package and available in wide-lead spacing and SMD option. The input-output isolation voltage is rated at 5000 Vrms. KPC4N33 Series 6PIN PHOTODARLINGTON PHOTOCOUPLER z Schematic 1 6 2 5 3 4 z Features 1. Current transfer ratio ( CTR：Min. 500% at IF=1mA VCE=2V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Compact dual-in-line package 5. MSL class 1 6. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) 1. Anode 2. Cathode 3. NC 4. Emitter 5. Collector 6.
