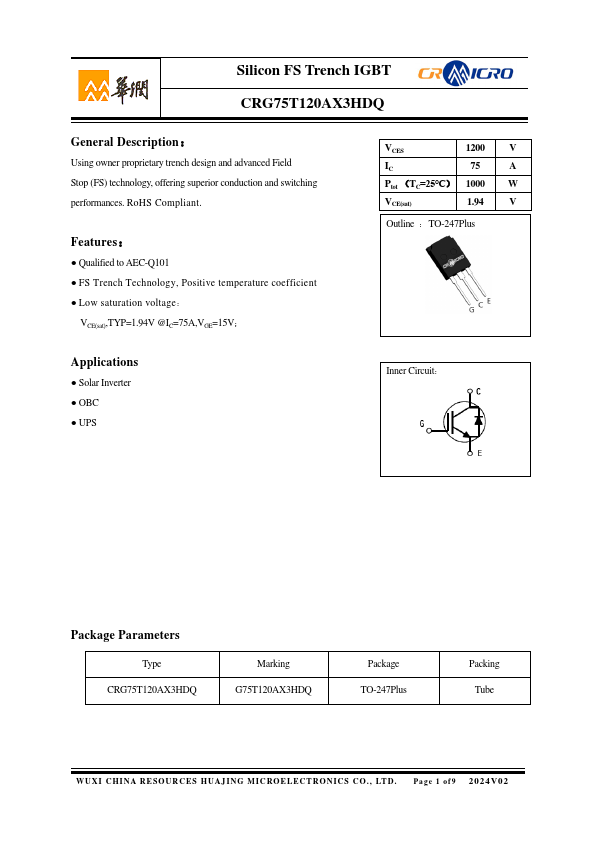

CRG75T120AX3HDQ
CRG75T120AX3HDQ is Silicon FS Trench IGBT manufactured by CR Micro.
Description
：
Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
Features
：
- Qualified to AEC-Q101
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage：
VCE(sat),TYP=1.94V @IC=75A,VGE=15V；
VCES
1200 V
Ptot （TC=25℃） 1000
VCE(sat)
1.94 V
Outline ：TO-247Plus
Applications
- Solar Inverter
- OBC
- UPS
Inner Circuit：
Package Parameters
Type CRG75T120AX3HDQ
Marking G75T120AX3HDQ
Package TO-247Plus
Packing Tube
WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 of 9 2024V02
Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol VCES VGES VGES
IC ICMa1
PD Tvjopa2 Tstg
Parameter
Collector-Emitter Voltage
Gate- Emitter Voltage
Gate- Emitter Voltage（tp≤10us,D<0.01）
Collector Current Collector...
