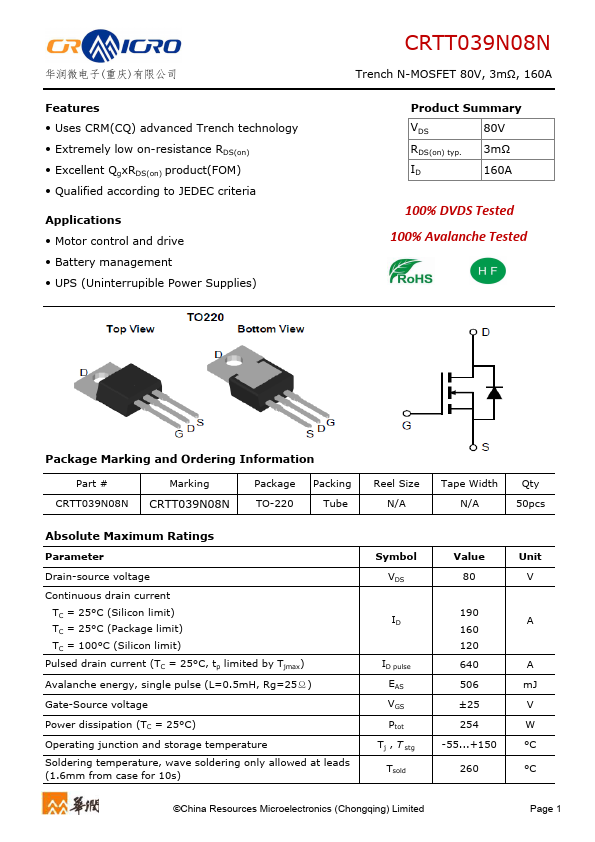

CRTT039N08N
CRTT039N08N is Trench N-MOSFET manufactured by CR Micro.
华润微电子(重庆)有限公司
Features
- Uses CRM(CQ) advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- Motor control and drive
- Battery management
- UPS (Uninterrupible Power Supplies)
Trench N-MOSFET 80V, 3mΩ, 160A
Product Summary
80V
RDS(on) typ.
3mΩ
160A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # CRTT039N08N
Marking
Package TO-220
Packing Tube
Reel Size N/A
Tape Width N/A
Qty...
