CRTT280P06L2-G Overview

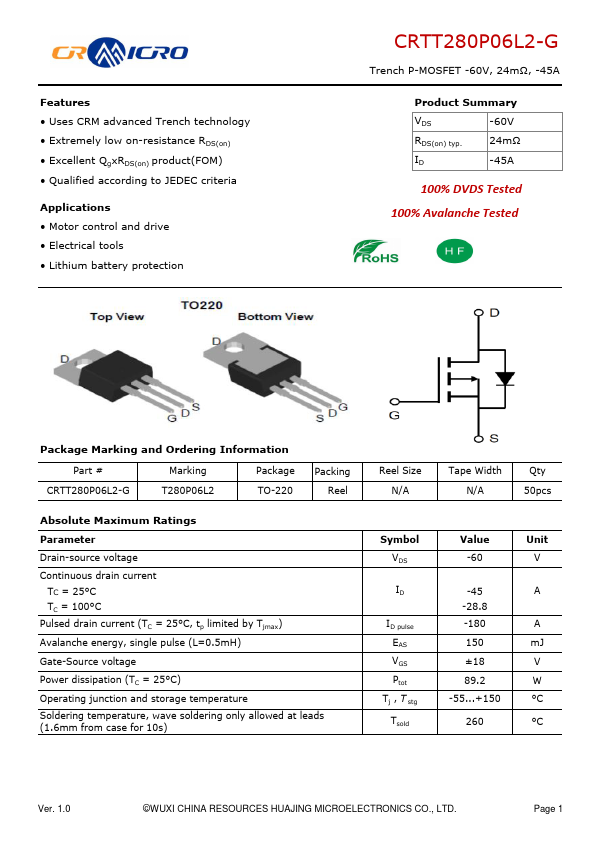

Features Uses CRM advanced Trench technology Extremely low on-resistance RDS(on) Excellent QgxRDS(on) product(FOM) Qualified according to JEDEC criteria Applications Motor control and drive Electrical tools Lithium battery protection CRTT280P06L2-G Trench P-MOSFET -60V, 24mΩ, -45A Product Summary VDS -60V RDS(on) typ. 1.0 ©WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 CRTT280P06L2-G Trench P-MOSFET...
CRTT280P06L2-G Key Features
- Uses CRM advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
