CCHD-950
CCHD-950 is Ultra-Low Phase Noise Oscillator manufactured by CRYSTEK.
CCHD-950 Model 9×14 mm SMD, 3.3V, HCMOS
50 MHz HCMOS 3.3V
CCHD-950 Ultra-Low Phase Noise
Oscillator
80 MHz HCMOS 3.3V
100 MHz HCMOS 3.3V
130 MHz HCMOS 3.3V

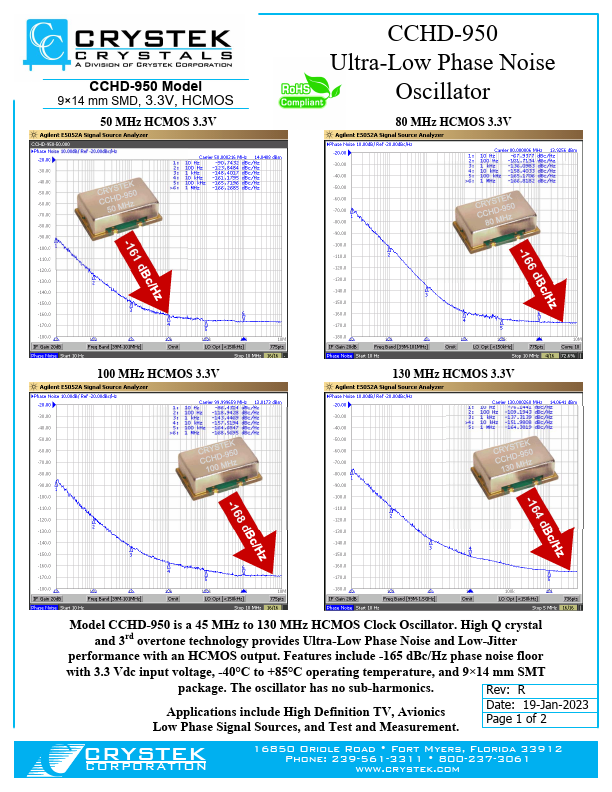

Model CCHD-950 is a 45 MHz to 130 MHz HCMOS Clock Oscillator. High Q crystal and 3rd overtone technology provides Ultra-Low Phase Noise and Low-Jitter performance with an HCMOS output. Features include -165 d Bc/Hz phase noise floor with 3.3 Vdc input voltage, -40°C to +85°C operating temperature, and 9×14 mm SMT package. The oscillator has no sub-harmonics.
Rev: R
Applications include High Definition TV, Avionics Low Phase Signal Sources, and Test and Measurement.
Date: 19-Jan-2023 Page 1 of 2
C CRYSTEK CORPORATION
16850 Oriole Road
- Fort Myers, Florida 33912 Phone: 239-561-3311
- 800-237-3061 .crystek.
Ultra-Low Phase Noise
CCHD-950 Model 9×14 mm SMD, 3.3V, HCMOS
Oscillator

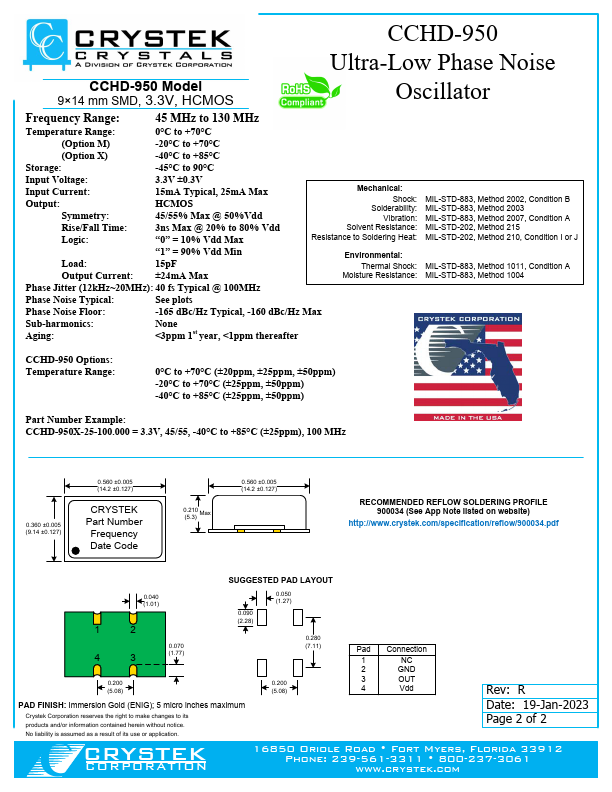

Frequency Range:
45 MHz to 130 MHz
Temperature Range:
0°C to +70°C
(Option M)
-20°C to +70°C
(Option X)
-40°C to +85°C
Storage:
-45°C to 90°C
Input Voltage: Input Current: Output:
Symmetry: Rise/Fall Time:...
