CCSS-945 - Ultra Low Noise SineWave Clock Oscillator

CRYSTEK

Datasheet Details

Part number	CCSS-945
Manufacturer	CRYSTEK
File Size	483.60 KB
Description	Ultra Low Noise SineWave Clock Oscillator
Datasheet	CCSS-945 Datasheet
Additional preview pages of the CCSS-945 datasheet.

📁 Similar Datasheet

CCS-18 - Normally Open Coaxial Switch (Teledyne)
CCS-32 - Latching Coaxial Switch (Teledyne)
CCS020M12CM2 - Silicon Carbide Six-Pack (Three Phase) Module (Cree)
CCS050M12CM2 - All-Silicon Carbide Six-Pack (Three Phase) Module (Cree)
CCS15S30 - Schottky Barrier Diode (Toshiba)
CCS15S40 - Schottky Barrier Diode (Toshiba)
CCS801 - Ultra-low power multi-gas sensor (CMOS Sensors)
CCS801 - Ultra-Low Power Analog VOC Sensor (ams)
CCS803 - Ultra-low power gas sensor (CMOS Sensors)
CCS811 - Ultra-Low Power Digital Gas Sensor (ams)

Other Datasheets by CRYSTEK

Full PDF Text Transcription

Click to expand full text

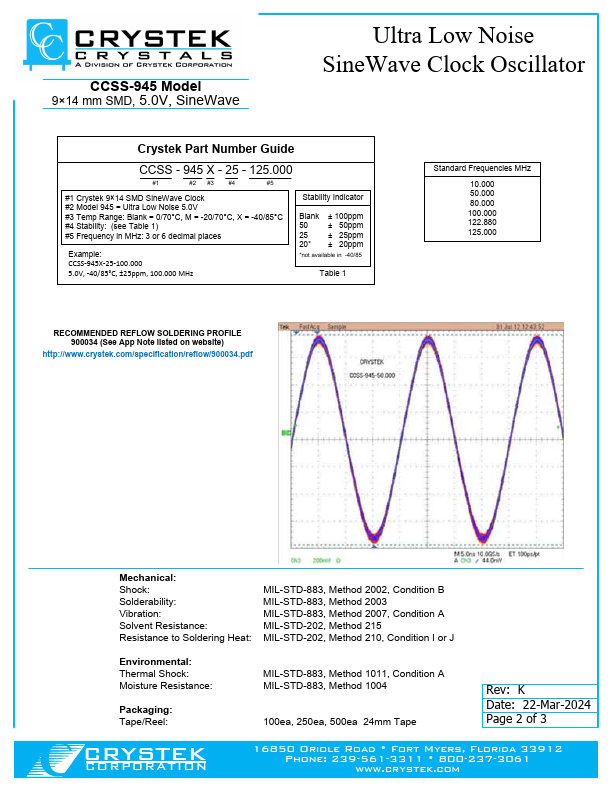

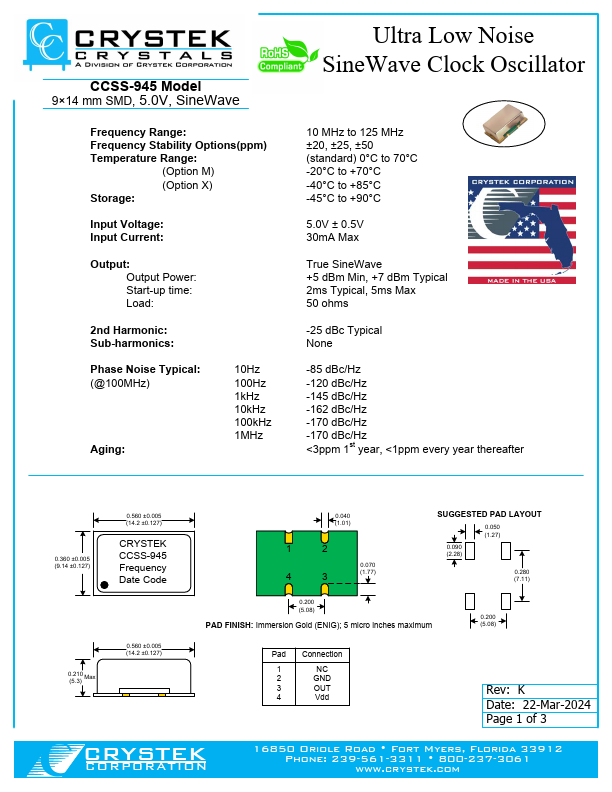

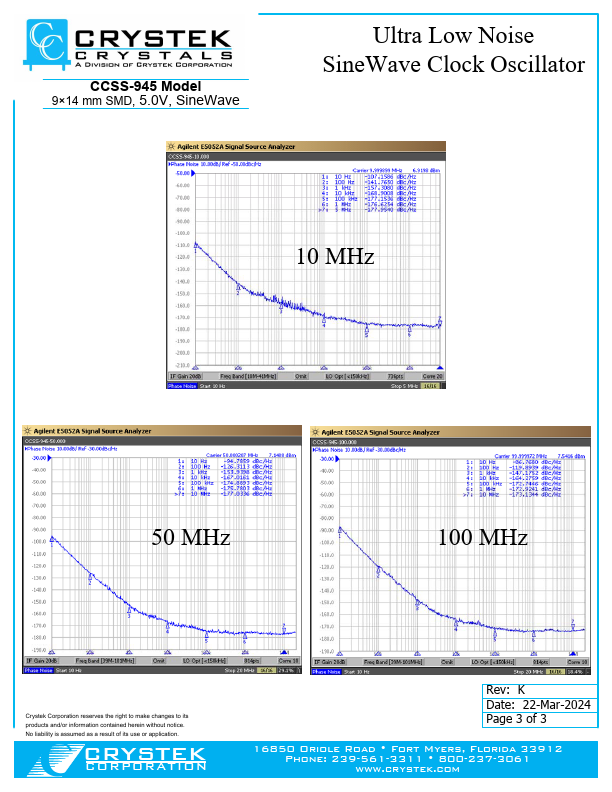

CCSS-945 Model 9×14 mm SMD, 5.0V, SineWave Frequency Range: Frequency Stability Options(ppm) Temperature Range: (Option M) (Option X) Storage: Input Voltage: Input Current: Output: Output Power: Start-up time: Load: 2nd Harmonic: Sub-harmonics: Phase Noise Typical: (@100MHz) Aging: 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz Ultra Low Noise SineWave Clock Oscillator 10 MHz to 125 MHz ±20, ±25, ±50 (standard) 0°C to 70°C -20°C to +70°C -40°C to +85°C -45°C to +90°C 5.0V ± 0.5V 30mA Max True SineWave +5 dBm Min, +7 dBm Typical 2ms Typical, 5ms Max 50 ohms -25 dBc Typical None -85 dBc/Hz -120 dBc/Hz -145 dBc/Hz -162 dBc/Hz -170 dBc/Hz -170 dBc/Hz <3ppm 1st year, <1ppm every year thereafter 0.360 ±0.005 (9.14 ±0.127) 0.560 ±0.005 (14.2 ±0.127) CRYSTEK CCSS-945 Frequency Date Code 0.210 (5.
