CPDETLS-4000 - RF Power Detector

Key Features

  • 10 MHz to 4 GHz Frequency Range.
  • Zero Bias Schottky.
  • Large Signal Power Detector, greater than -10 dBm.
  • +30 dBm Max Input Signal.
  • 100 pF Video Capacitance.
  • Operating Temperature: -20°C to 70°C.
  • Storage Temperature: -40°C to 85°C.

📥 Download Datasheet

Datasheet Details

Part number CPDETLS-4000
Manufacturer CRYSTEK
File Size 197.91 KB
Description RF Power Detector
Datasheet download datasheet CPDETLS-4000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CPD-110EST (CPD-110EST/GS) Service Manual Sony
CPD-110GS (CPD-110EST/GS) Service Manual Sony
CPD-200SX Color Computer Display Sony
CPD-200SX Color Computer Display Service Manual Sony
CPD-E500 TORINITORON COLOR COMPUTER DISPLAY SERVICE MANUAL Sony

Other Datasheets by CRYSTEK

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

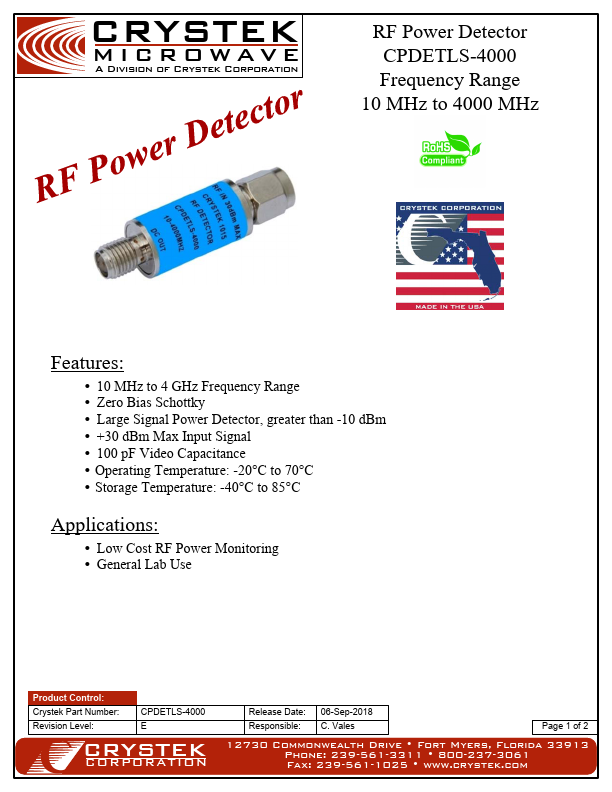

CRYSTEK MICROWAVE A Division of Crystek Corporation RF Power Detector CPDETLS-4000 Frequency Range 10 MHz to 4000 MHz Features: • 10 MHz to 4 GHz Frequency Range • Zero Bias Schottky • Large Signal Power Detector, greater than -10 dBm • +30 dBm Max Input Signal • 100 pF Video Capacitance • Operating Temperature: -20°C to 70°C • Storage Temperature: -40°C to 85°C Applications: • Low Cost RF Power Monitoring • General Lab Use Product Control: Crystek Part Number: CPDETLS-4000 Revision Level: E C CRYSTEK CORPORATION Release Date: Responsible: 06-Sep-2018 C. Vales Page 1 of 2 12730 Commonwealth Drive • Fort Myers, Florida 33913 Phone: 239-561-3311 • 800-237-3061 Fax: 239-561-1025 • www.crystek.
