CRBV55BE-0960-1200 - VCO

📥 Download Datasheet

📁 Similar Datasheet

  • CRB25 - Metal Film Resistors (Rohm)
  • CRB455E - Ceramic Resonators (Dayang)
  • CRB455E - CRB455E (Jingzhongye)
  • CRB455E - Ceramic Resonator (Kangbidz)
  • CRB455KY2C3 - Ceramic Resonators (Dayang)
  • CRB456F - Special Size Oscillator (Fronter Electronics)
  • CRB480E - Special Size Oscillator (Fronter Electronics)
  • CRB503F - Special Size Oscillator (Fronter Electronics)
Other Datasheets by CRYSTEK

Full PDF Text Transcription

Click to expand full text

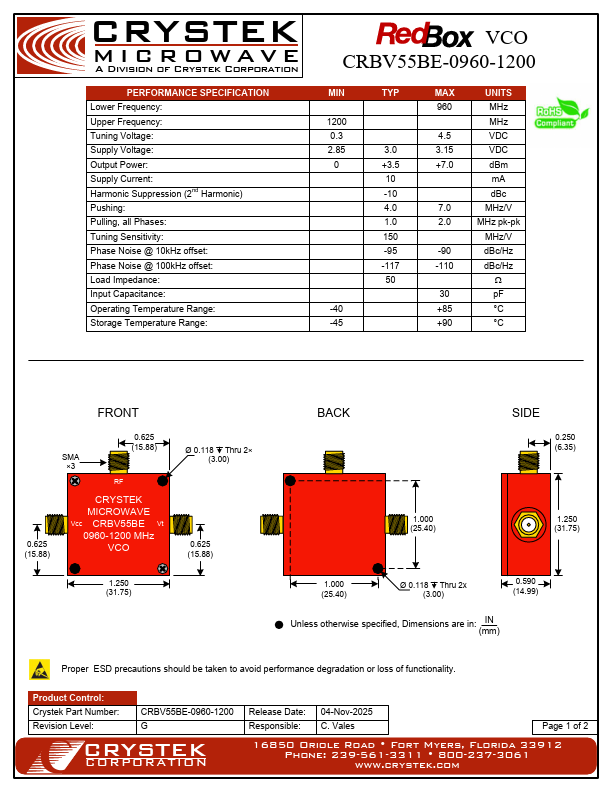

CRYSTEK MICROWAVE A Division of Crystek Corporation PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic) Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10kHz offset: Phase Noise @ 100kHz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range: VCO CRBV55BE-0960-1200 MIN 1200 0.3 2.85 0 -40 -45 TYP 3.0 +3.5 10 -10 4.0 1.0 150 -95 -117 50 MAX 960 4.5 3.15 +7.0 7.0 2.0 -90 -110 30 +85 +90 UNITS MHz MHz VDC VDC dBm mA dBc MHz/V MHz pk-pk MHz/V dBc/Hz dBc/Hz  pF °C °C FRONT SMA ×3 0.625 (15.88) RF 0.625 (15.88) CRYSTEK MICROWAVE Vcc CRBV55BE Vt 0960-1200 MHz VCO Ø 0.118 Thru 2× (3.00) 0.625 (15.88) 1.250 (31.
