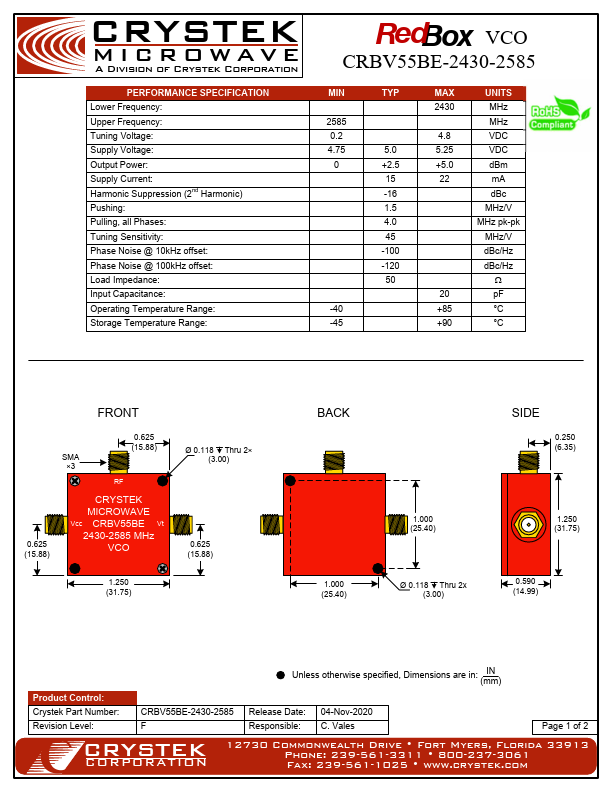

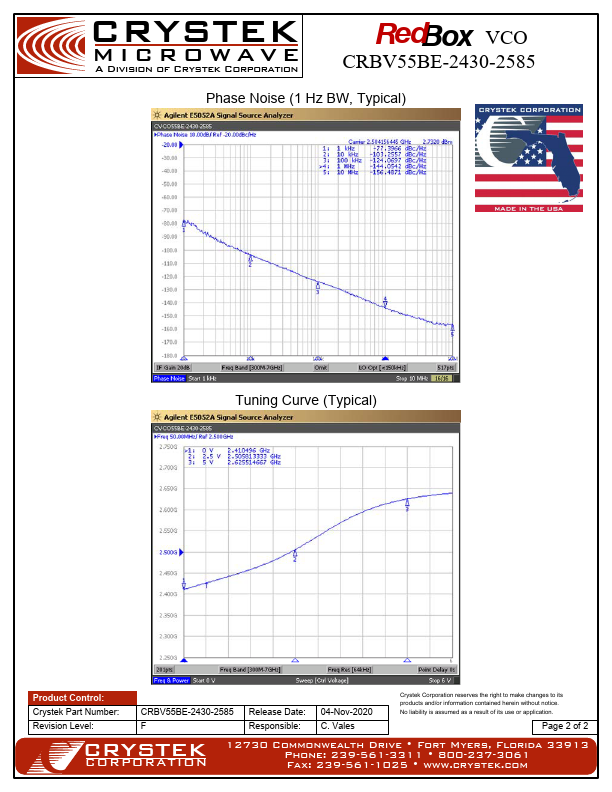

CRYSTEK MICROWAVE A Division of Crystek Corporation PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic) Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10kHz offset: Phase Noise @ 100kHz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range: RedBox VCO CRBV55BE-2430-2585 MIN 2585 0.2 4.75 0 -40 -45 TYP 5.0 +2.5 15 -16 1.5 4.0 45 -100 -120 50 MAX 2430 4.8 5.25 +5.0 22 20 +85 +90 UNITS MHz MHz VDC VDC dBm mA dBc MHz/V MHz pk-pk MHz/V dBc/Hz dBc/Hz  pF °C °C FRONT 0.625 (15.88) SMA ×3 0.625 (15.88) RF CRYSTEK MICROWAVE Vcc CRBV55BE Vt 2430-2585 MHz VCO Ø 0.118 Thru 2× (3.00) 0.625 (15.88) 1.250 (31.75) BACK SIDE 0.
