CVCO55CL-0805-0900 - Voltage Controlled Oscillator

CRYSTEK

Datasheet Details

Part number	CVCO55CL-0805-0900
Manufacturer	CRYSTEK
File Size	233.60 KB
Description	Voltage Controlled Oscillator
Datasheet	CVCO55CL-0805-0900 Datasheet

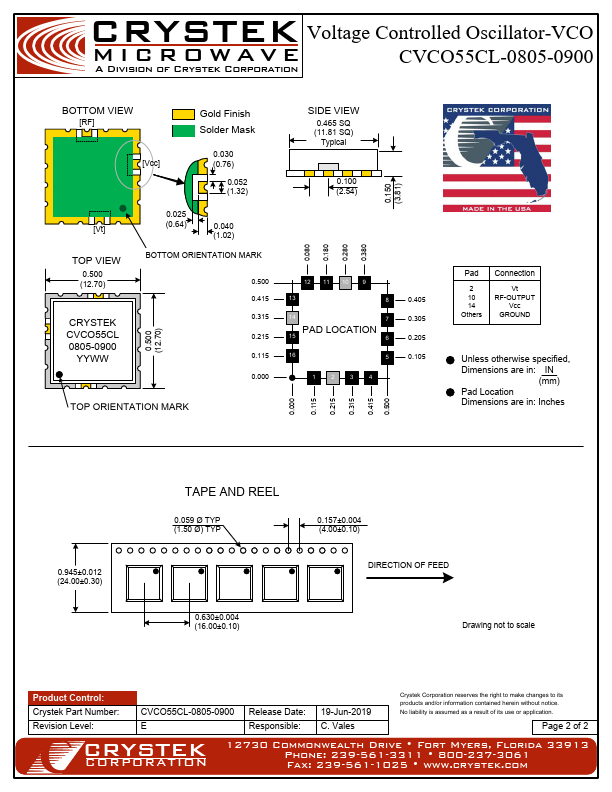

Additional preview pages of the CVCO55CL-0805-0900 datasheet.

📁 Similar Datasheet

CVCO55BE-1000-1500 - voltage controlled oscillator (CRYSTEK CORPORATION)

Other Datasheets by CRYSTEK

CVCO55CC-0380-0440 - Coaxial Resonator Oscillator
CVCO55CC-0430-0480 - Coaxial Resonator Oscillator
CVCO55CC-2120-2200 - Coaxial Resonator Oscillator
CVCO55CC-3200-3200 - Coaxial Resonator Oscillator
CVCO55CC-3350-3500 - Coaxial Resonator Oscillator-CRO
CVCO55CC-4124-4238 - Coaxial Resonator Oscillator
CVCO55CW-0140-0250 - Voltage Controlled Oscillator
CVCO55CW-0250-0450 - Voltage Controlled Oscillator

Full PDF Text Transcription

Click to expand full text

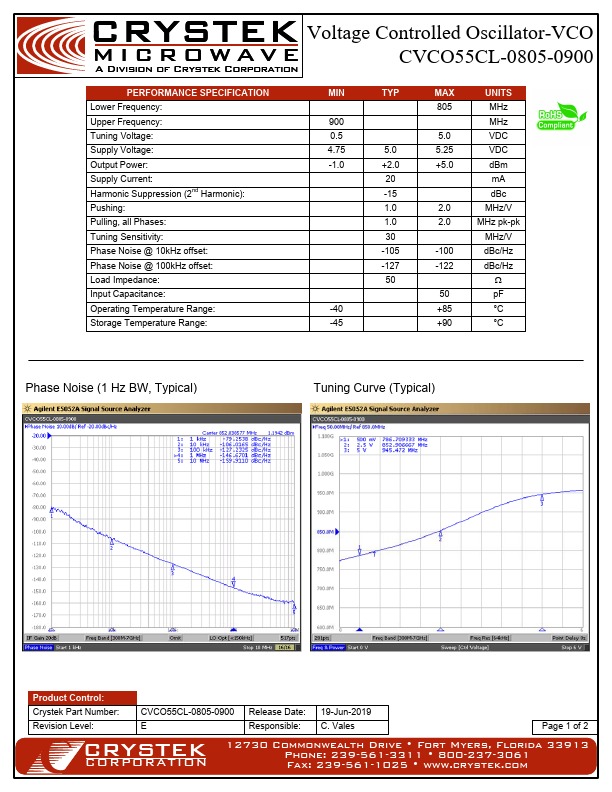

CRYSTEK Voltage Controlled Oscillator-VCO MICROWAVE CVCO55CL-0805-0900 A Division of Crystek Corporation PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic): Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10kHz offset: Phase Noise @ 100kHz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range: MIN TYP MAX UNITS 805 MHz 900 MHz 0.5 5.0 VDC 4.75 5.0 5.25 VDC -1.0 +2.0 +5.0 dBm 20 mA -15 dBc 1.0 2.0 MHz/V 1.0 2.
