CVCO55CW-0140-0250 - Voltage Controlled Oscillator

CRYSTEK

Datasheet Details

Part number	CVCO55CW-0140-0250
Manufacturer	CRYSTEK
File Size	215.52 KB
Description	Voltage Controlled Oscillator
Datasheet	CVCO55CW-0140-0250 Datasheet
Additional preview pages of the CVCO55CW-0140-0250 datasheet.

📁 Similar Datasheet

CVCO55BE-1000-1500 - voltage controlled oscillator (CRYSTEK CORPORATION)

Other Datasheets by CRYSTEK

CVCO55CW-0250-0450 - Voltage Controlled Oscillator
CVCO55CW-0400-1300 - Voltage Controlled Oscillator
CVCO55CC-0380-0440 - Coaxial Resonator Oscillator
CVCO55CC-0430-0480 - Coaxial Resonator Oscillator
CVCO55CC-2120-2200 - Coaxial Resonator Oscillator
CVCO55CC-3200-3200 - Coaxial Resonator Oscillator
CVCO55CC-3350-3500 - Coaxial Resonator Oscillator-CRO
CVCO55CC-4124-4238 - Coaxial Resonator Oscillator

Full PDF Text Transcription

Click to expand full text

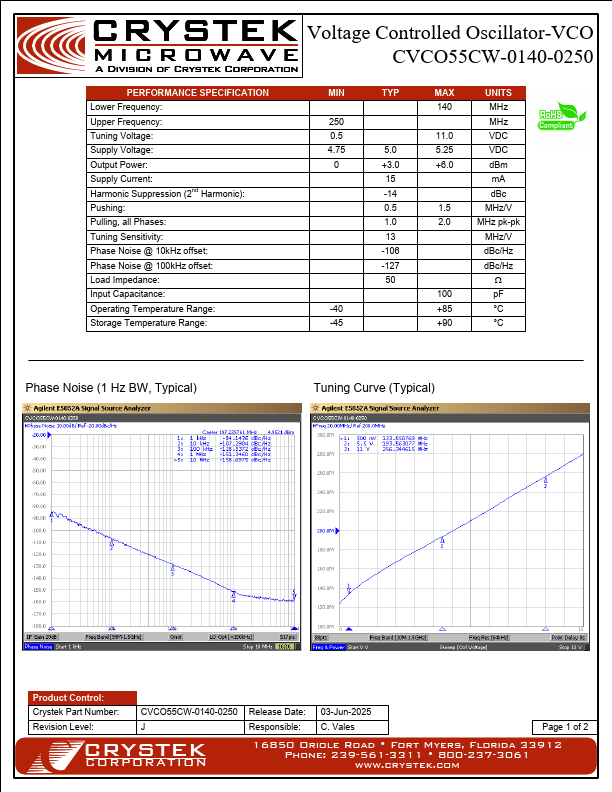

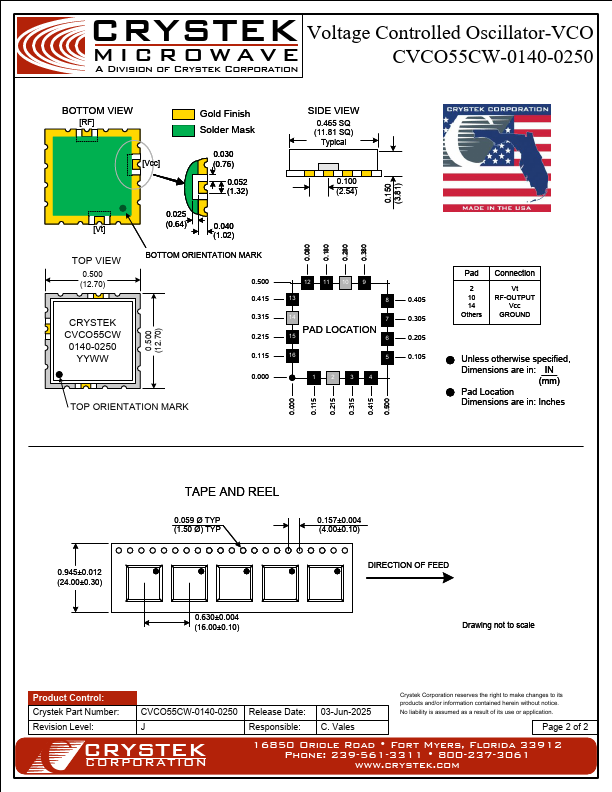

CRYSTEK Voltage Controlled Oscillator-VCO MICROWAVE CVCO55CW-0140-0250 A Division of Crystek Corporation PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic): Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10kHz offset: Phase Noise @ 100kHz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range: MIN TYP MAX UNITS 140 MHz 250 MHz 0.5 11.0 VDC 4.75 5.0 5.25 VDC 0 +3.0 +6.0 dBm 15 mA -14 dBc 0.5 1.5 MHz/V 1.0 2.
