CVCO55CW-0250-0450
CRYSTEK Voltage Controlled Oscillator-VCO
MICROWAVE
A Division of Crystek Corporation
PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic): Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10k Hz offset: Phase Noise @ 100k Hz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range:
UNITS
MHz
MHz
-3.5
+3.5 d Bm
12 m A
-10 d Bc
MHz/V
MHz pk-pk
MHz/V
-96 d Bc/Hz
-117 d Bc/Hz
100 p F
-40
+85
°C
-45
+90
°C

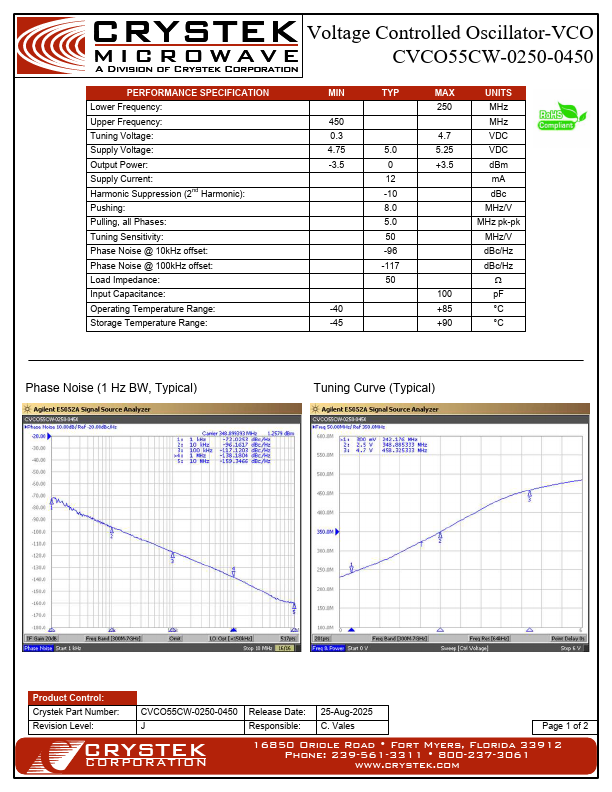

Phase Noise (1 Hz BW, Typical)
Tuning Curve (Typical)

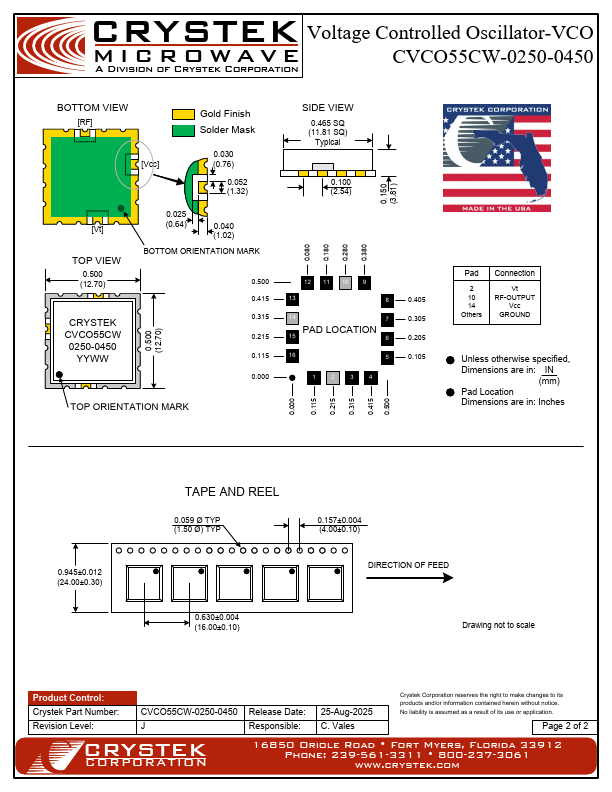

Product Control: Crystek Part Number: Revision Level:
CVCO55CW-0250-0450 Release Date:...
