CVCSO-914-1000 Datasheet Ultra-Low Phase Noise True SineWave VCSO

Manufacturer: CRYSTEK

Overview: CVCSO-914-1000 Model 9×14 mm SMD, 5.0V, SineWave Ultra-Low Phase Noise True SineWave 1GHz SAW Based VCSO CVCSO-914-1000 Model CVCSO-914-1000 is a 1 GHz voltage-controlled SAW (surface acoustic wave) Clock Oscillator (VCSO). SAW crystal technology provides low-noise and low-jitter performance with true sinewave output.

📥 Download Datasheet

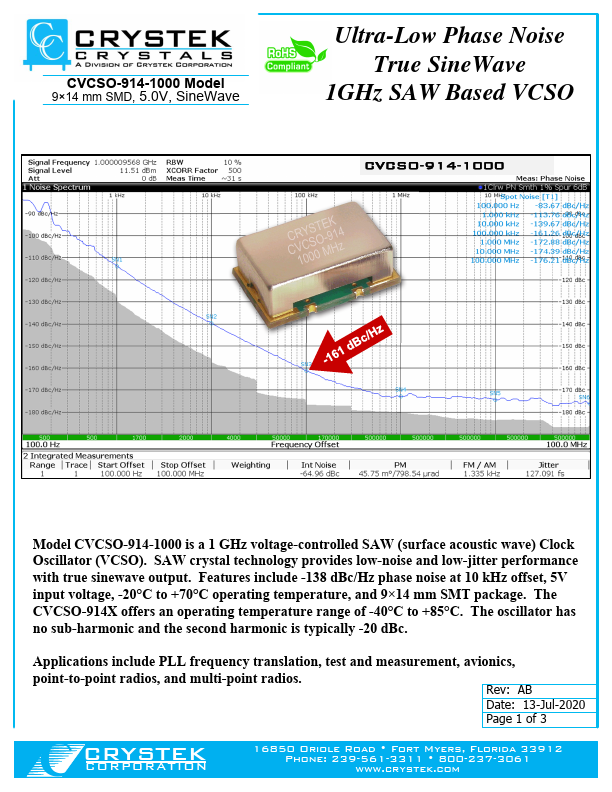

CVCSO-914-1000 ultra-low phase noise true sinewave vcso by CRYSTEK - Datasheet Preview

Datasheet Details

Part number	CVCSO-914-1000
Manufacturer	CRYSTEK
File Size	1.04 MB
Description	Ultra-Low Phase Noise True SineWave VCSO
Download	CVCSO-914-1000 Download (PDF)

Key Features

include -138 dBc/Hz phase noise at 10 kHz offset, 5V input voltage, -20°C to +70°C operating temperature, and 9×14 mm SMT package. The CVCSO-914X offers an operating temperature range of -40°C to +85°C. The oscillator has no sub-harmonic and the second harmonic is typically -20 dBc.
