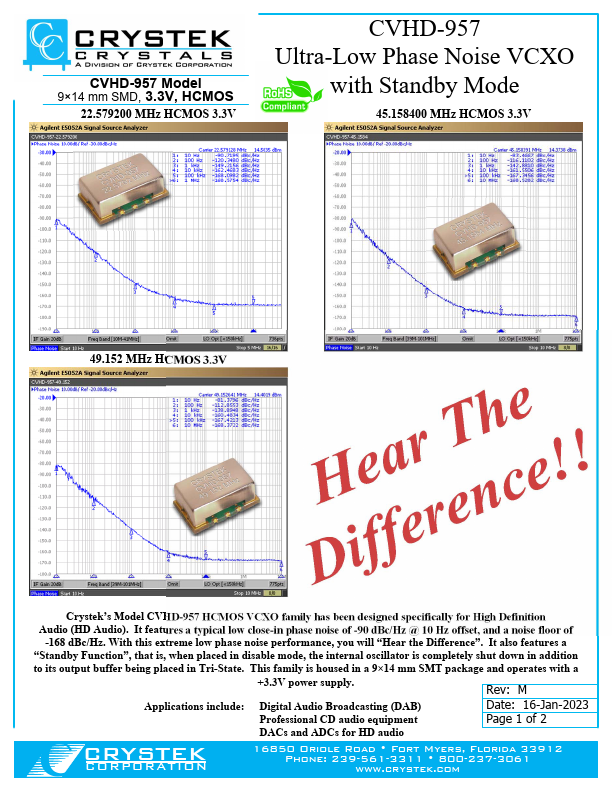

CVHD-957
CVHD-957 is Ultra-Low Phase Noise VCXO manufactured by CRYSTEK.
features a typical low close-in phase noise of -90 d Bc/Hz @ 10 Hz offset, and a noise floor of
-168 d Bc/Hz. With this extreme low phase noise performance, you will “Hear the Difference”. It also features a
“Standby Function”, that is, when placed in disable mode, the internal oscillator is pletely shut down in addition to its output buffer being placed in Tri-State. This family is housed in a 9×14 mm SMT package and operates with a
+3.3V power supply.
Rev: M
Applications include: Digital Audio Broadcasting (DAB) Professional CD audio equipment
Date: 16-Jan-2023 Page 1 of 2
DACs and ADCs for HD audio
C CRYSTEK CORPORATION
16850 Oriole Road
- Fort Myers, Florida 33912 Phone: 239-561-3311
- 800-237-3061 .crystek.
Ultra-Low Phase Noise VCXO
CVHD-957 Model 9×14 mm SMD, 3.3V, HCMOS with Standby Mode
Frequency Range:
10 MHz to 50 MHz
Temperature Range: (Option M) (Option X)
Storage:
0°C to +70°C -20°C to +70°C -40°C to +85°C -45°C to 90°C
Mechanical:
Shock: Solderability:
Vibration: Solvent Resistance:
MIL-STD-883, Method 2002, Condition B MIL-STD-883, Method 2003 MIL-STD-883, Method 2007, Condition A MIL-STD-202, Method 215
Input Voltage:
3.3V ±5%
Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition I or J
Input Current:
15m A Typical, 25m A Max
Input Current (Disabled Mode): 1.5m A Max
Input: Modulation Bandwidth: >10 k Hz @ -3 d B
Environmental:
Thermal Shock: MIL-STD-883, Method 1011, Condition A Moisture Resistance: MIL-STD-883, Method 1004
Impedance:
50 k Ohm
Control Voltage: Tuning Sensitivity: Frequency Pulling:
1.65V ±1.65V +85 ppm/V Typical ±100ppm Min, ±75ppm Min for 10 MHz variant
Developed Frequencies
Output:
HCMOS
22.5792...
