MT3151A05-2 Datasheet PDF

CSOT MT3151A05-2

MT3151A05-2 is a diagonal 31.5” color active matrix LCD module with edge LED backlight and 1ch-LVDS interface. This module is a transmissive type display operating in the normally black mode. It supports 1366 x 768 HD resolution and can display up to 16.7M colors (8-bit).

Part No.	MT3151A05-2
Datasheet	MT3151A05-2 Download
Manufacturer	CSOT
Description	color active matrix LCD
Buy	Stock & Price

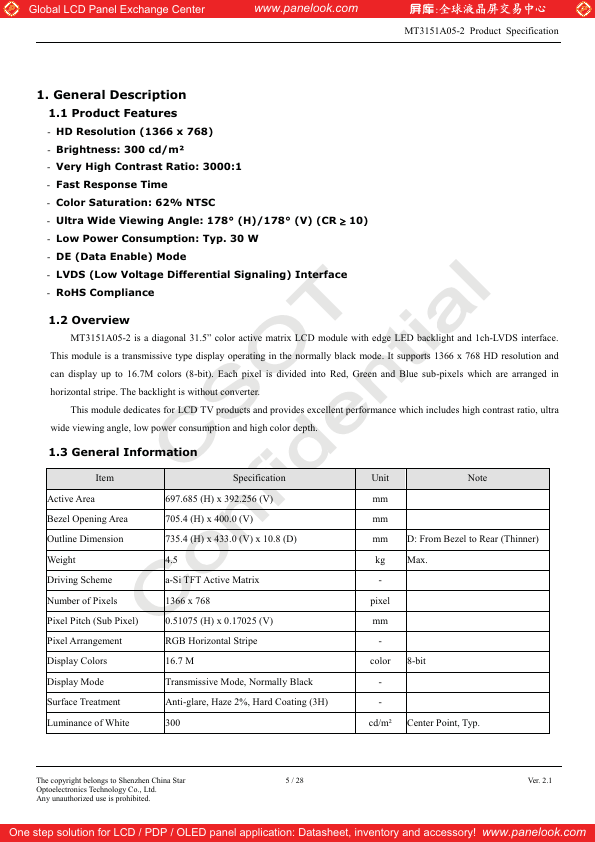

GENERAL DESCRIPTION

1.1 Product

FEATURES

- HD Resolution (1366 x 768) - Brightness: 300 cd/m² - Very High Contrast Ratio: 3000:1 - Fast Response Time - Color Saturation: 62% NTSC - Ultra Wide Viewing Angle: 178° (H)/178° (V) (CR t 10) - Low Power Consumption: Typ. 30 W - DE (Data Enable) Mode - LVDS (Low Voltage Differential Signaling) Interface - RoHS Compliance 1.2 Overview Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in horizontal stripe. The backlight is without converter. This module dedicates for LCD TV products and provides excellent performance which includes high contrast ratio, ultra wide viewing angle, low power consumption and high color depth. 1.3 General Information Item Active Area Bezel Opening Area Outline Dimension Weight Driving Scheme Number of Pixels Pixel Pitch (Sub Pixel) Pixel Arrangement Display Colors Display Mode Surface Treatment Luminance of White Specification 697.685 (H) x 392.256 (V) 705.4 (H) x 400.0 (V) 735.4 (H) x 433.0...
