ST3151A05-1 Datasheet PDF

CSOT ST3151A05-1

ST3151A05-1 is a diagonal 31.5” color active matrix LCD open cell with 1ch-LVDS interface. This open cell is a transmissive type display operating in the normally black mode. It supports 1366 x 768 HD resolution and can display up to 16.7M colors (8-bit).

Part No.	ST3151A05-1
Datasheet	ST3151A05-1 Download
Manufacturer	CSOT
Description	color active matrix LCD
Buy	Stock & Price

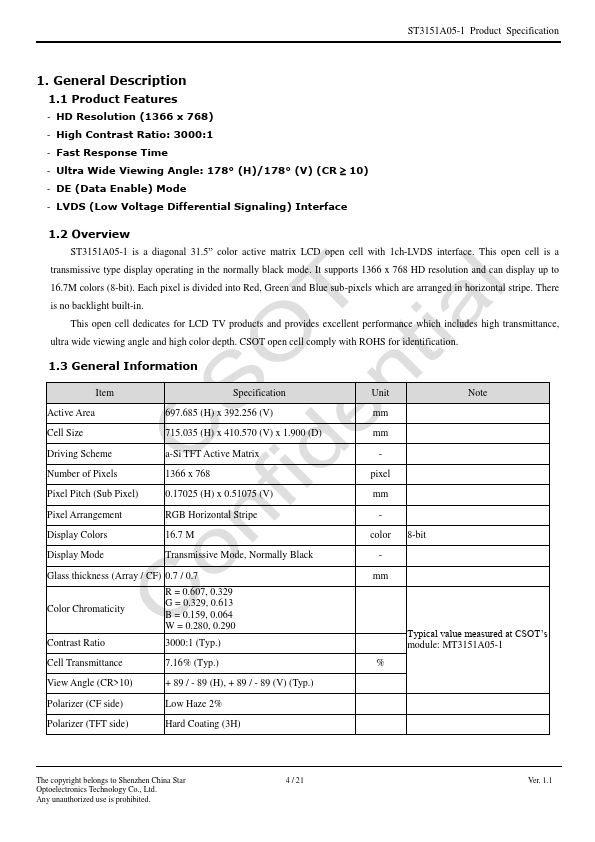

GENERAL DESCRIPTION

1.1 Product

FEATURES

- HD Resolution (1366 x 768) - High Contrast Ratio: 3000:1 - Fast Response Time - Ultra Wide Viewing Angle: 178°(H)/178°(V) (CR  10) - DE (Data Enable) Mode - LVDS (Low Voltage Differential Signaling) Interface 1.2 Overview Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in horizontal stripe. There is no backlight built-in. This open cell dedicates for LCD TV products and provides excellent performance which includes high transmittance, ultra wide viewing angle and high color depth. CSOT open cell comply with ROHS for identification. 1.3 General Information Item Specification Active Area 697.685 (H) x 392.256 (V) Cell Size 715.035 (H) x 410.570 (V) x 1.900 (D) Driving Scheme a-Si TFT Active Matrix Number of Pixels 1366 x 768 Pixel Pitch (Sub Pixel) 0.17025 (H) x 0.51075 (V) Pixel Arrangement RGB Horizontal Stripe Display Colors 16.7 M Display Mode Transmissive Mode, Normally Black Glass thickness (Array / CF) 0.7 / 0.7 Color Chromaticity R = 0.607, 0.329 G = 0.329, 0.613 B = 0.159, 0.064 W = 0.280, 0.290 Contrast Ratio 3000:1 (Typ.) Cell Transmittance 7.16% (Typ.
