ST4251B01-1 - LCD Module

General Description

4 1.1 Product

Key Features

  • 4 1.2 Overview4 1.3 General Information4 2. Absolute Maximum Ratings 5 2.1 Absolute Maximum Ratings (TA = 25 ±2 °C) 5 2.2 Environment Requirement(Based on CSOT’s BLU)5 2.3 Absolute Ratings of Environment (Open Cell)5 3. Electrical Specifications 6 3.1 Open Cell Power Consumption (TA = 25 ±2 °C) 6 3.2 LVDS Characteristics7 3.3 Temperature Specifications8 3.4 Driver IC ESD Specifications8 4. Input Terminal Pin Assignment 9 4.1 Interface Pin Assignment 9 4.2 Block Diagram of Interface 12 4.3 LVDS I.

📥 Download Datasheet

Datasheet Details

Part number ST4251B01-1
Manufacturer CSOT
File Size 1.63 MB
Description LCD Module
Datasheet download datasheet ST4251B01-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ST422 Variable Compression Mica Trimmers and Padders Arco Electronics
ST4045C SCHOTTKY RECTIFIER SMC Diode
ST40RA 32-bit Embedded SuperH Device STMicroelectronics
ST4130A Crystal Clock Oscillator SaRonix
ST4139A Crystal Clock Oscillator SaRonix

Other Datasheets by CSOT

Part Number Description
ST4601B02-1 LCD
ST4601B02-2 LCD
ST4601B02-3 LCD
ST4761B01-3 LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

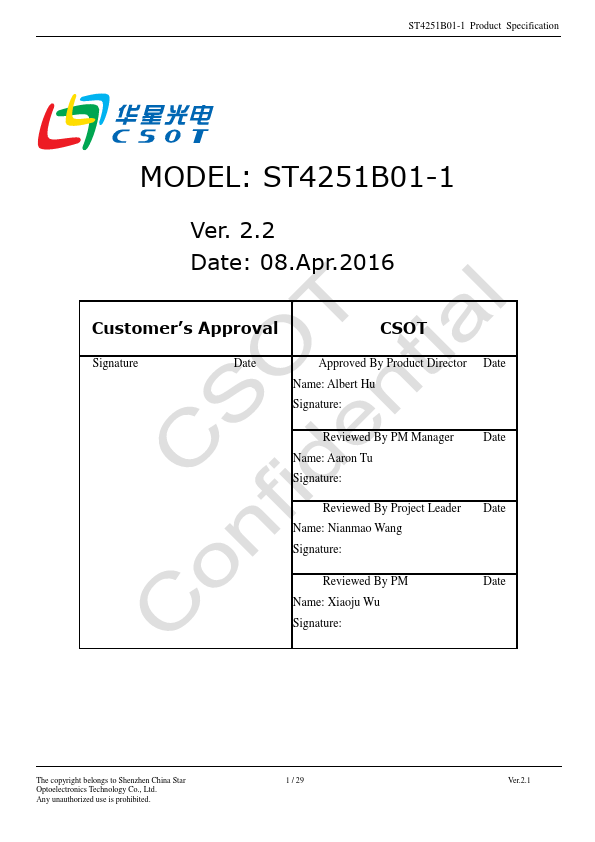

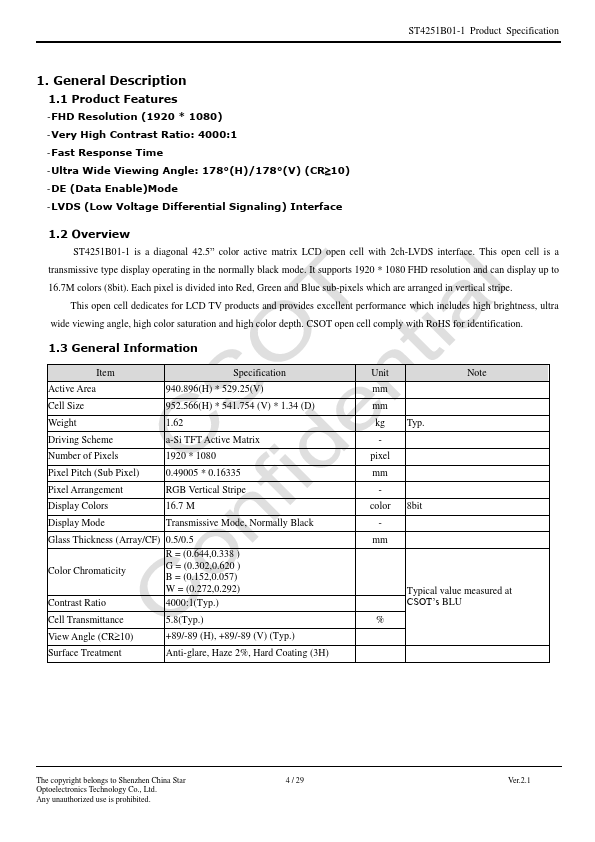

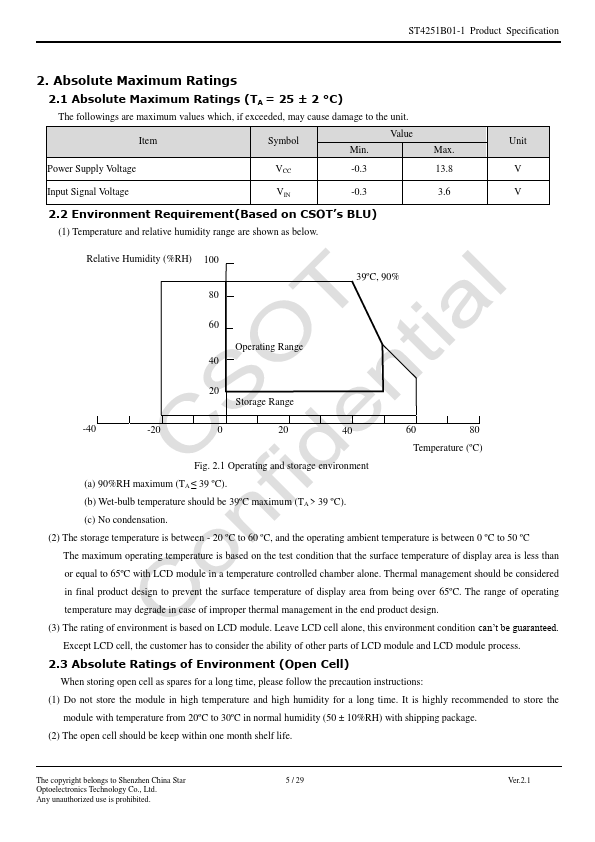

ST4251B01-1 Product Specification MODEL: ST4251B01-1 Ver. 2.2 Date: 08.Apr.2016 Customer’s Approval CSOT Signature Date Approved By Product Director Date Name: Albert Hu Signature: Reviewed By PM Manager Name: Aaron Tu Signature: Date Reviewed By Project Leader Name: Nianmao Wang Signature: Date Reviewed By PM Name: Xiaoju Wu Signature: Date The copyright belongs to Shenzhen China Star Optoelectronics Technology Co., Ltd. Any unauthorized use is prohibited. 1 / 29 Ver.2.1 ST4251B01-1 Product Specification Contents 1. General Description .......................................................................................................................................4 1.1 Product Features ....................................................................................
