ST5461D07-1

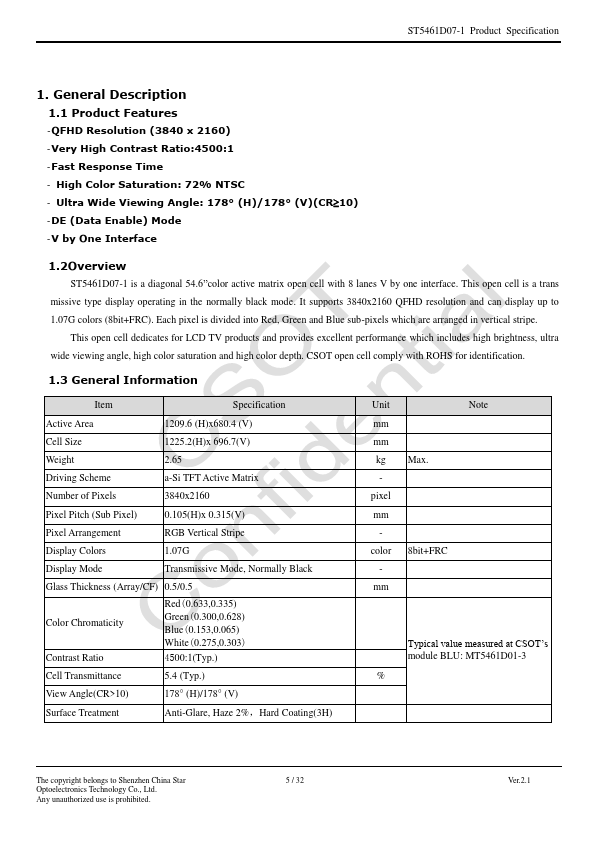

Description
1.1 Product Features
-QFHD Resolution (3840 x 2160)
- Very High Contrast Ratio:4500:1
- Fast Response Time
- High Color Saturation: 72% NTSC
- Ultra Wide Viewing Angle: 178°(H)/178°(V)(CR10)
- DE (Data Enable) Mode
- V by One Interface
1.2Overview
ST5461D07-1 is a diagonal 54.6”color active matrix open cell with 8 lanes V by one interface. This open cell is a trans missive type display operating in the normally black mode. It supports 3840x2160 QFHD resolution and can display up to 1.07G colors (8bit+FRC). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.
This open cell dedicates for LCD TV products and provides excellent performance which includes high brightness, ultra wide viewing angle, high color saturation and high color depth. CSOT open cell ply with ROHS for identification.
1.3 General Information
Item
Specification
Active Area
1209.6 (H)x680.4 (V)
Cell Size
1225.2(H)x 696.7(V)
Weight
Driving Scheme...
