4N36 - Phototransistor Optocoupler

This page provides the datasheet information for the 4N36, a member of the 4N35 Phototransistor Optocoupler family.

Product Overview

CT Micro

Datasheet Details

Part number	4N36
Manufacturer	CT Micro
File Size	1.60 MB
Description	Phototransistor Optocoupler
Datasheet	4N36 Datasheet
Additional preview pages of the 4N36 datasheet.

4N36 Product details

Description

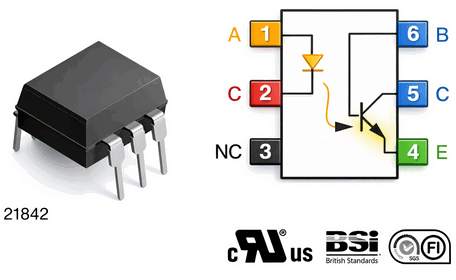

The 4N25, 4N26, 4N27, 4N28, 4N35, 4N36, 4N37, 4N38, H11A1, H11A2, H11A3, H11A4, H11A5 series consist of a photo transistor optically coupled to an Infrared-emitting diode in a 6-lead DIP DMC-Isolator® package with different lead forming options.

Microprocessor system interface

Features

High isolation 5000 VRMS.
Patented coplanar structure DMC-Isolator®.
DC input with transistor output.
Operating Temperature range - 55 °C to 110 °C.
External Creepage ≥ 7.4mm.
Distance Through Isolation ≥ 0.4mm.
Clearance Distance ≥ 7.5mm (S/SL Type).
Clearance Distance ≥ 8.0mm (M Type).
RoHS and REACH Compliance.
Halogen Free Compliance (Optional).
MSL class 1.
Regulatory Approvals.
UL - UL1577 (E364000).
VDE - EN607.
