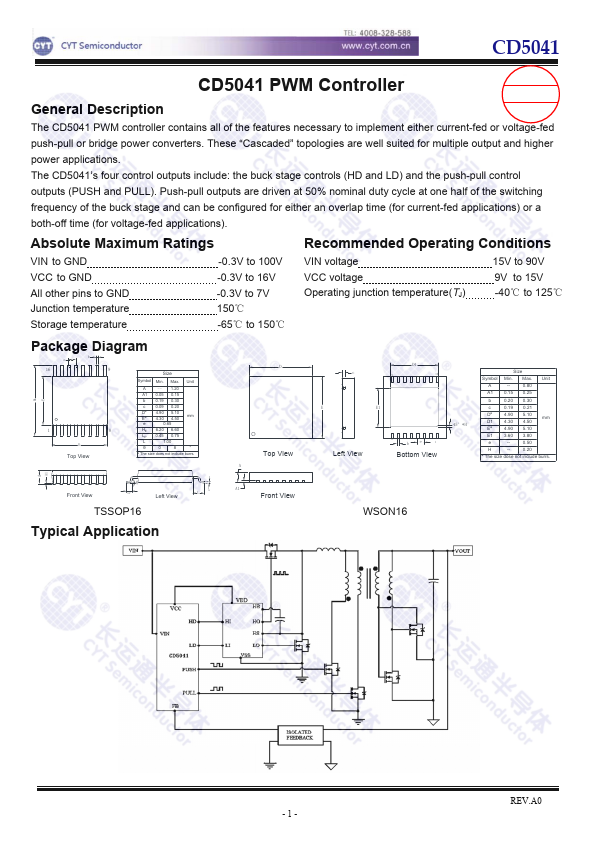

CD5041
CD5041 is PWM Controller manufactured by CYT.

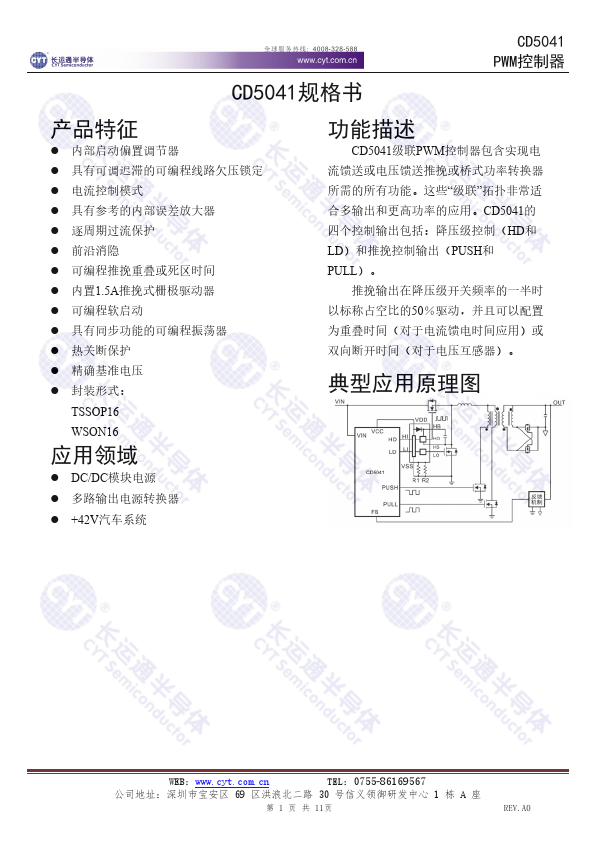

Description
The CD5041 PWM controller contains all of the features necessary to implement either current-fed or voltage-fed push-pull or bridge power converters. These “Cascaded” topologies are well suited for multiple output and higher power applications. The CD5041’s four control outputs include: the buck stage controls (HD and LD) and the push-pull control outputs (PUSH and PULL). Push-pull outputs are driven at 50% nominal duty cycle at one half of the switching frequency of the buck stage and can be configured for either an overlap time (for current-fed applications) or a both-off time (for voltage-fed applications).
Absolute Maximum Ratings
Remended Operating Conditions
VIN to GND VCC to GND All other pins to GND Junction temperature Storage temperature
-0.3V to 100V -0.3V to 16V -0.3V to 7V 150℃ -65℃ to 150℃
VIN voltage VCC voltage Operating junction temperature(TJ)
15V to 90V 9V to 15V -40℃ to 125℃
Package Diagram e b
Top View
Size
Symbol Min. Max. Unit
-- 1.20
A1 0.05 0.15 b 0.19 0.30 c
0.09 0.20
Da Ea
4.90 4.30
5.10 4.50 mm e
HE 6.20 6.60
LP 0.45 0.75
θ
° a The size does not include burrs.
Top View
D1 c 9
E1
Left View
8 be
Bottom View
45°-...
