CYT1001D datasheet by CYT.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | CYT1001D |
|---|---|
| Datasheet | CYT1001D CYT1001A Datasheet (PDF) |
| File Size | 945.94 KB |
| Manufacturer | CYT |
| Description | Single-stage linear constant current LED control integrated IC |
|
|

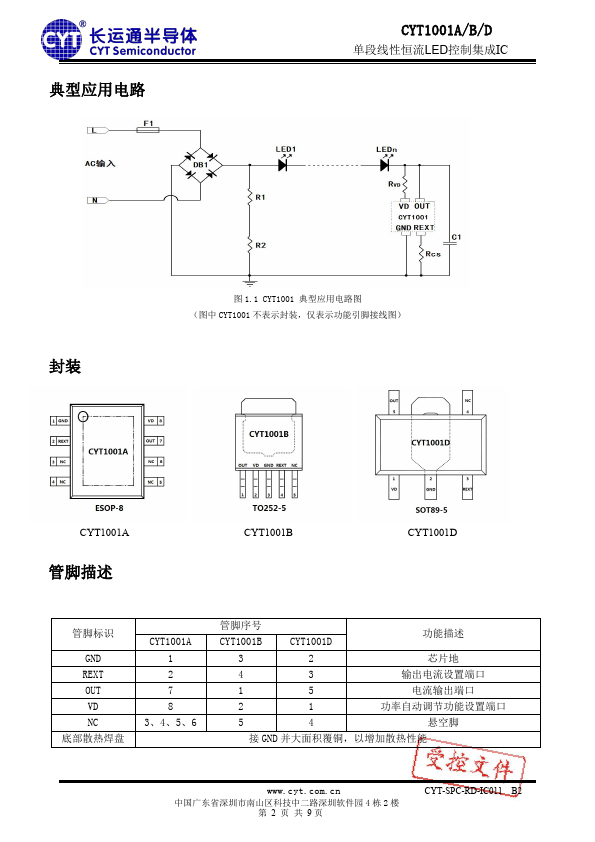

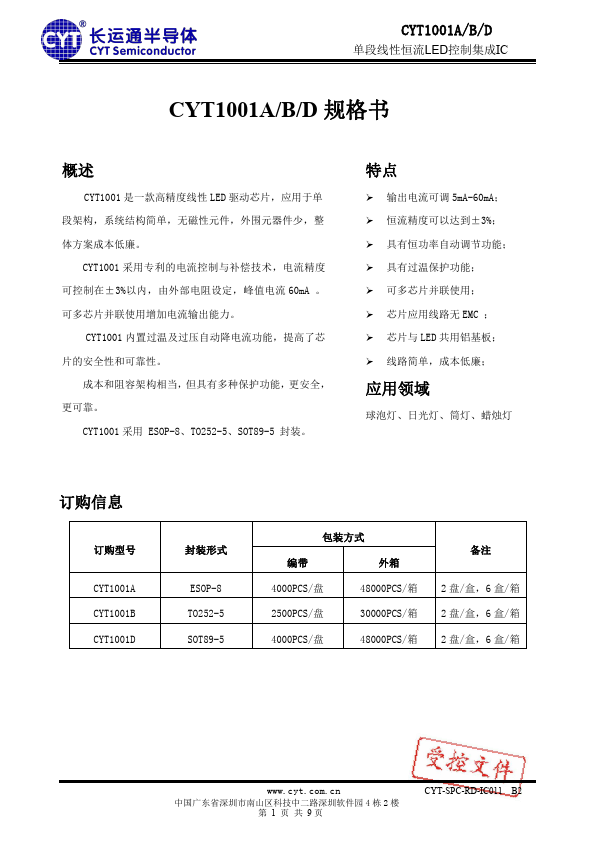

CYT1001A/B/D 单段线性恒流LED控制集成IC CYT1001A/B/D 规格书 概述 CYT1001 是一款高精度线性 LED 驱动芯片，应用于单 段架构，系统结构简单，无磁性元件，外围元器件少，整 体方案成本低廉。 CYT1001 采用专利的电流控制与补偿技术，电流精度 可控制在±3%以内，由外部电阻设定，峰值电流 60mA 。 可多芯片并联使用增加电流输出能力。 CYT1001 内置过温及过压自动降电流功能，提高了芯 片的安全性和可靠性。 成本和阻容架构相当，但具有多种保护功能，更安全，.
| Part Number | Description |
|---|---|
| CYT1001DG | Single-stage linear constant current LED control chip |
| CYT1001A | Single-stage linear constant current LED control integrated IC |
| CYT1001AG | Single-stage linear constant current LED control chip |
| CYT1001B | Single-stage linear constant current LED control integrated IC |
| CYT1001BG | Single-stage linear constant current LED control chip |
| CYT1000A | Dual-channel linear constant current LED control chip |
| CYT1000AE | single segment LED linear constant current control chip |
| CYT1000AEG | single segment LED linear constant current control chip |
| CYT1000AG | Dual-channel linear constant current LED control chip |
| CYT1000AT | single segment LED linear constant current control chip |
