CYT3000B - linear constant current

General Description

CYT3000B is a linear constant current IC on high voltage LED chips, used in LED lighting field.

Through a unique patented technology and constant current control, IC CYT3000B can realize constant current precision less than ±5%, the output current can be regulated by the external RCS resistor.

📥 Download Datasheet

CYT3000B linear constant current by CYT - Datasheet Preview

Datasheet Details

Part number	CYT3000B
Manufacturer	CYT
File Size	191.44 KB
Description	linear constant current
Datasheet	CYT3000B Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
CYT3000B	High power factor linear constant LED	EgoLL
CYT3000A	High power factor linear constant-current driver	EgoLL
CYT3BB	T2G 32-bit Automotive MCU	Infineon
CYT3DL	T2G 32-bit Automotive MCU	Infineon
CYT3DLABABQ1AESGS	T2G 32-bit Automotive MCU	Infineon

Other Datasheets by CYT

Part Number	Description
CYT3000BS	linear constant current
CYT3000A	High power factor segmented linear constant current LED controller
CYT3000C	High power factor linear constant current LED
CYT3401	P-Channel 30V (D-S) 4.5A P-MOSFET
CYT3406	Synchronous Buck DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

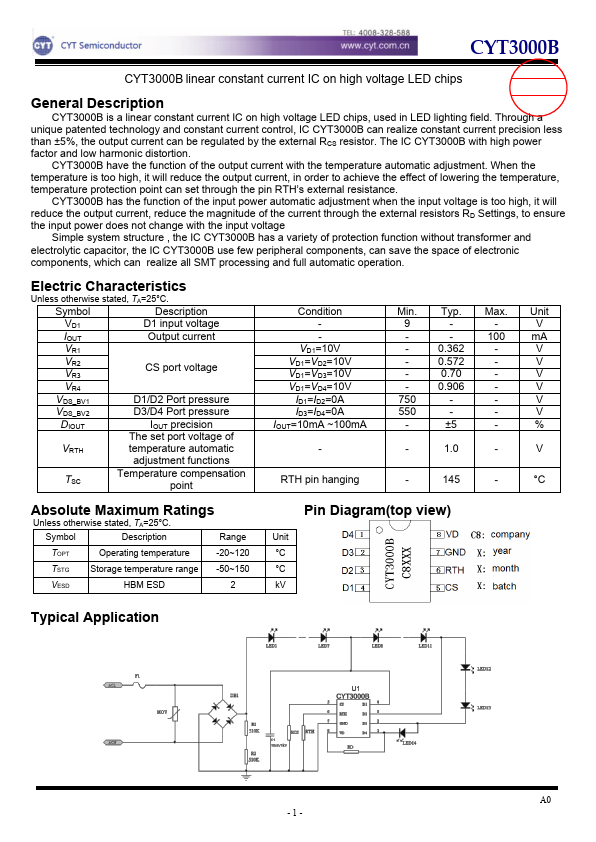

CYT3000B CYT3000B linear constant current IC on high voltage LED chips General Description CYT3000B is a linear constant current IC on high voltage LED chips, used in LED lighting field. Through a unique patented technology and constant current control, IC CYT3000B can realize constant current precision less than ±5%, the output current can be regulated by the external RCS resistor. The IC CYT3000B with high power factor and low harmonic distortion. CYT3000B have the function of the output current with the temperature automatic adjustment. When the temperature is too high, it will reduce the output current, in order to achieve the effect of lowering the temperature, temperature protection point can set through the pin RTH’s external resistance.
