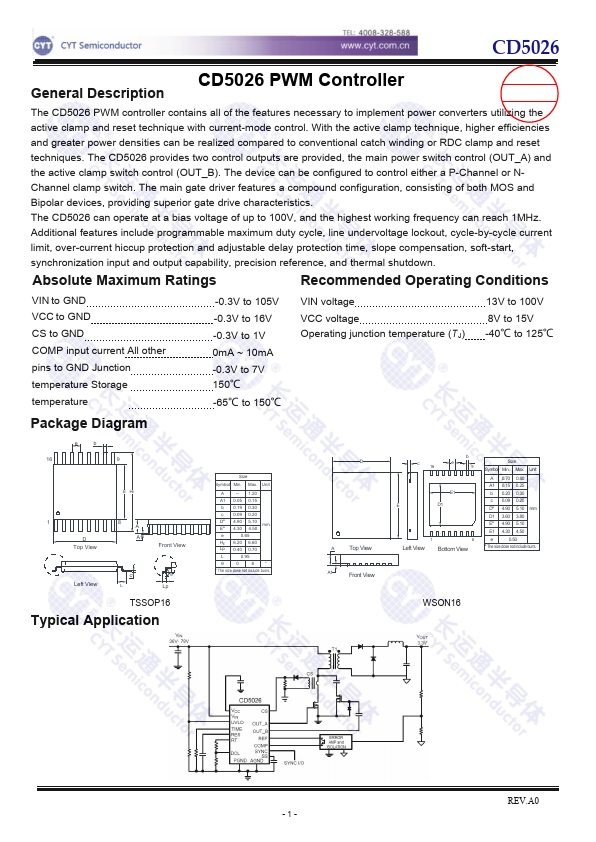

CD5026 General Description CD5026 PWM Controller The CD5026 PWM controller contains all of the Features necessary to implement power converters utilizing the active clamp and reset technique with current-mode control. With the active clamp technique, higher efficiencies and greater power densities can be realized pared to conventional catch winding or RDC clamp and reset techniques. The CD5026 provides two control outputs are provided, the main power switch control (OUT_A) and the active clamp switch control (OUT_B). The device can be configured to control either a P-Channel or NChannel clamp switch. The main gate driver Features a pound configuration, consisting of both MOS and Bipolar devices, providing superior gate drive characteristics. The CD5026 can operate at a bias voltage of up to 100V, and the highest working frequency can reach 1MHz. Additional Features include programmable maximum duty cycle, line undervoltage lockout, cycle-by-cycle current limit, over-current hiccup protection and adjustable delay protection time, slope pensation, soft-start, synchronization input and output capability, precision reference, and thermal...
