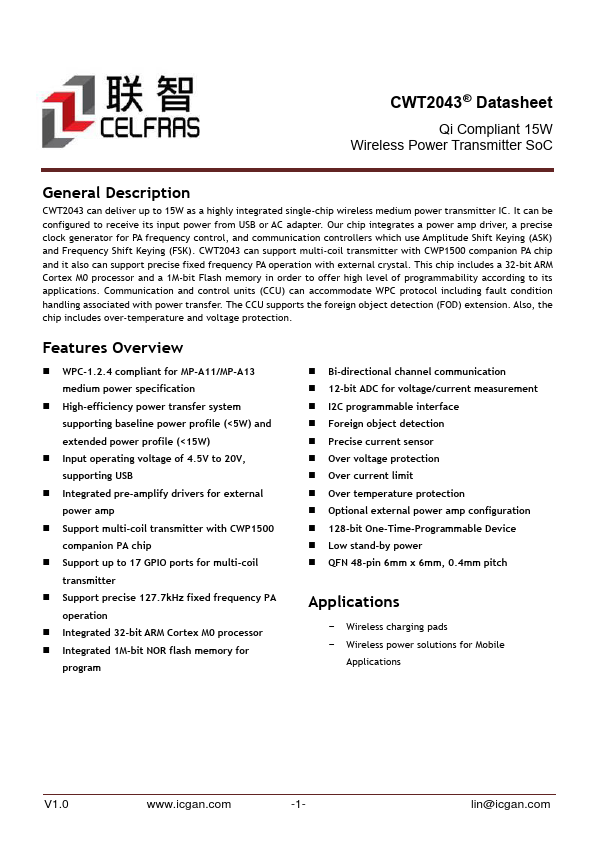

CWT2043 Description
CWT2043 can deliver up to 15W as a highly integrated single-chip wireless medium power transmitter IC. It can be configured to receive its input power from USB or AC adapter. Our chip integrates a power amp driver, a precise clock generator for PA frequency control, and munication controllers which use Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK).
CWT2043 Key Features
- WPC-1.2.4 pliant for MP-A11/MP-A13 medium power specification
- High-efficiency power transfer system supporting baseline power profile (<5W) and extended power profile (<15W)
- Input operating voltage of 4.5V to 20V, supporting USB
- Integrated pre-amplify drivers for external power amp
- Support multi-coil transmitter with CWP1500 panion PA chip
- Support up to 17 GPIO ports for multi-coil transmitter
- Support precise 127.7kHz fixed frequency PA operation
- Integrated 32-bit ARM Cortex M0 processor
- Bi-directional channel munication
- 12-bit ADC for voltage/current measurement
