CW1353 datasheet by Cellwise.
| Part number | CW1353 |
|---|---|
| Datasheet | CW1353-Cellwise.pdf |
| File Size | 586.27 KB |
| Manufacturer | Cellwise |
| Description | 4-5 battery protection IC |
|
|

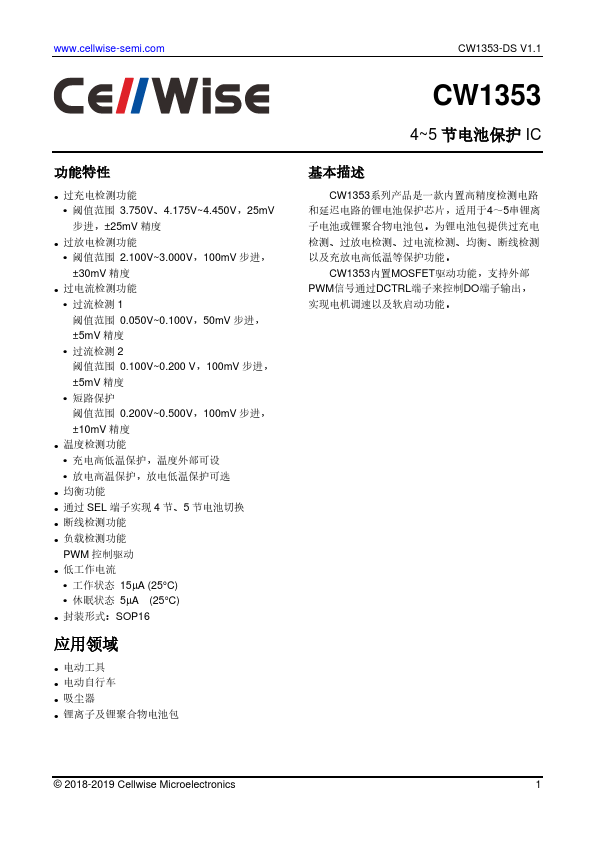

.cellwise-semi. CW1353-DS V1.1 功能特性 过充电检测功能 阈值范围 3.750V、4.175V~4.450V，25mV 步进，± 25mV 精度 过放电检测功能 阈值范围 2.100V~3.000V，100mV 步进， ± 30mV 精度 过电流检测功能 过流检测 1 阈值范围 0.050V~0.100V，50mV 步进， ± 5mV 精度 过流检测 2 阈值范围 0.100V~0.200 V，100mV 步进， ± 5mV 精度 短路保护 阈值范围.
