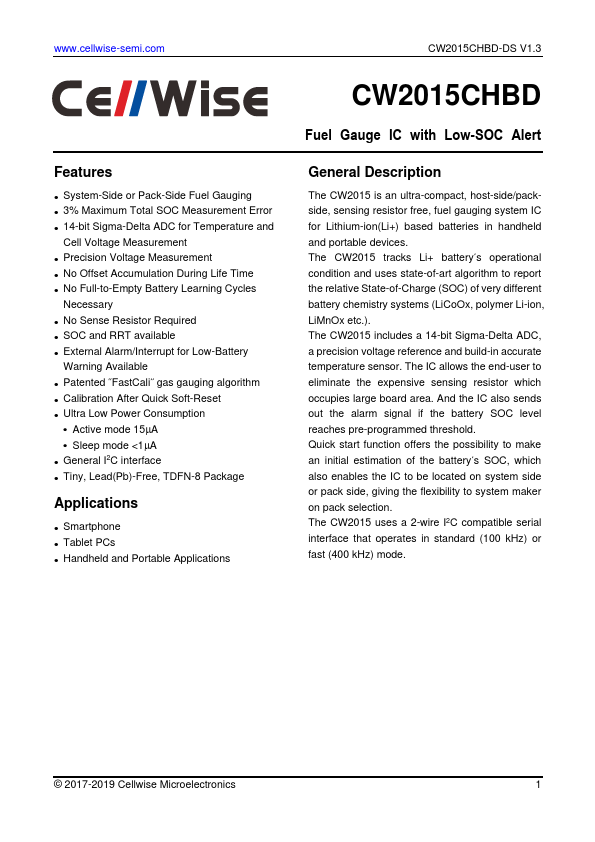

CW2015CHBD Datasheet | Cellwise

Features - System-Side or Pack-Side Fuel Gauging - 3% Maximum Total SOC Measurement Error - 14-bit Sigma-Delta ADC for Temperature and Cell Voltage Measurement - Precision Voltage Measurement - No Offset Accumulation During Life Time - No Full-to-Empty Battery Learning Cycles Necessary - No Sense Resistor Required - SOC and RRT available - External Alarm/Interrupt for Low-Battery Warning Available - Patented “Fast Cali” gas gauging algorithm - Calibration After Quick Soft-Reset - Ultra Low Power Consumption - Active mode 15A - Sleep mode <1A - General I2C interface - Tiny, Lead(Pb)-Free, TDFN-8 Package Applications - Smartphone - Tablet PCs - Handheld and Portable Applications Fuel Gauge IC with Low-SOC Alert General Description The CW2015 is an ultra-pact, host-side/packside, sensing resistor free, fuel gauging system IC for Lithium-ion(Li+) based batteries in handheld and portable devices. The CW2015 tracks Li+ battery’s operational condition and uses state-of-art algorithm to report the relative State-of-Charge (SOC) of very different battery chemistry systems (Li Co Ox, polymer Li-ion, Li Mn Ox etc.). The CW2015 includes a 14-bit Sigma-Delta ADC, a precision voltage reference and build-in accurate temperature sensor. The IC allows the end-user to eliminate the expensive sensing resistor which occupies large board area. And the IC also sends out the alarm signal if the battery SOC level reaches pre-programmed threshold. Quick start function offers the possibility to make an initial estimation of the battery’s SOC, which also enables the IC to be located on system side or pack side, giving the flexibility to system maker on pack selection. The CW2015 uses a 2-wire I2C patible serial interface that operates in standard (100 k Hz) or fast (400 k Hz) mode. © 2017-2019 Cellwise Microelectronics Typical Applications System Power Supply VCC I2C Master μP 4.7K SCL SDA VCELL CW2015...
