CZTA44HC - SURFACE MOUNT NPN SILICON HIGH CURRENT HIGH VOLTAGE TRANSISTOR

Datasheet Summary

Description

Semiconductor Corp.

The CENTRAL SEMICONDUCTOR CZTA44HC type is a surface mount epoxy molded silicon planar epitaxial transistors designed for extremely high voltage and high current applications.

📥 Download Datasheet

Datasheet preview – CZTA44HC

Datasheet Details

Part number CZTA44HC
Manufacturer Central Semiconductor Corp
File Size 106.70 KB
Description SURFACE MOUNT NPN SILICON HIGH CURRENT HIGH VOLTAGE TRANSISTOR
Datasheet download datasheet CZTA44HC Datasheet
Additional preview pages of the CZTA44HC datasheet.

📁 Similar Datasheet

  • CZTA42 - SURFACE MOUNT COMPLEMENTARY HIGH VOLTAGE SILICON TRANSISTORS (Central Semiconductor)
  • CZTA14 - SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • CZTA64 - SILICON DARLINGTON TRANSISTORS (Central Semiconductor)
  • CZTA77 - PNP SILICON DARLINGTON TRANSISTOR (Central Semiconductor)
  • CZTA92 - SURFACE MOUNT COMPLEMENTARY HIGH VOLTAGE SILICON TRANSISTORS (Central Semiconductor)
  • CZT122 - NPN Transistor (JCST)
  • CZT122 - TRANSISTOR (Central Semiconductor)
  • CZT122 - NPN Transistor (Guangdong Kexin Industrial)
  • CZT122 - TRANSISTOR (TY Semiconductor)
  • CZT127 - PNP Transistor (JCST)
Other Datasheets by Central Semiconductor Corp
  • CZTA44 - NPN TRANSISTOR
  • CZTA46 - SURFACE MOUNT NPN SILICON EXTREMELY HIGH VOLTAGE TRANSISTOR
  • CZTA27 - NPN HIGH VOLTAGE DARLINGTON TRANSISTOR
  • CZTA28 - SURFACE MOUNT NPN DARLINGTON TRANSISTOR
  • CZTA96 - SURFACE MOUNT PNP SILICON EXTREMELY HIGH VOLTAGE TRANSISTOR
  • CZT2000 - NPN SILICON EXTREMELY HIGH VOLTAGE DARLINGTON TRANSISTOR
  • CZT2222 - NPN SILICON TRANSISTOR
  • CZT2907A - PNP SILICON TRANSISTOR

Full PDF Text Transcription

Click to expand full text

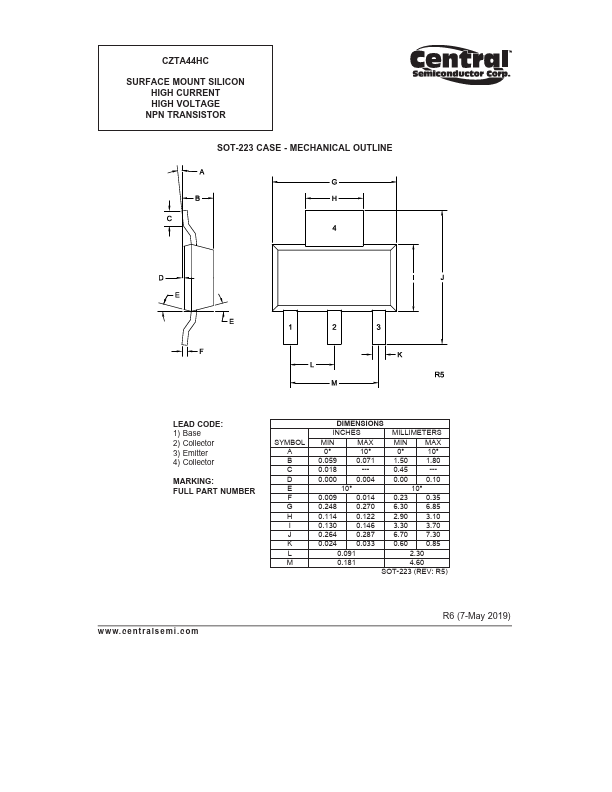

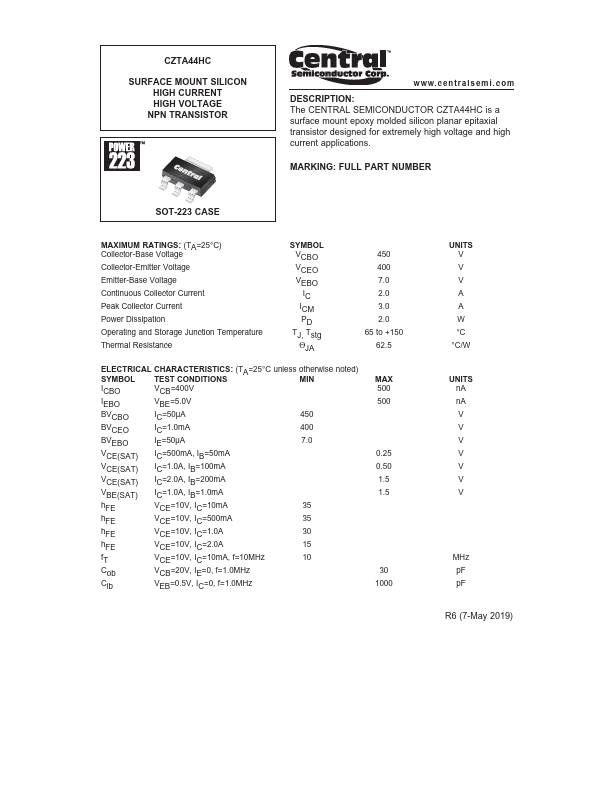

CZTA44HC SURFACE MOUNT NPN SILICON HIGH CURRENT HIGH VOLTAGE TRANSISTOR Central DESCRIPTION: TM Semiconductor Corp. The CENTRAL SEMICONDUCTOR CZTA44HC type is a surface mount epoxy molded silicon planar epitaxial transistors designed for extremely high voltage and high current applications. SOT-223 CASE MAXIMUM RATINGS: (TA=25°C) SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Current (PeaK) Power Dissipation Operating and Storage Junction Temperature Thermal Resistance VCBO VCEO VEBO IC ICM PD TJ,Tstg ΘJA 450 400 7.0 2.0 3.0 2.0 65 to +150 62.
