BC807-16
BC807-16 is SURFACE MOUNT SILICON PNP TRANSISTORS manufactured by Central Semiconductor.
- Part of the BC807 comparator family.
- Part of the BC807 comparator family.

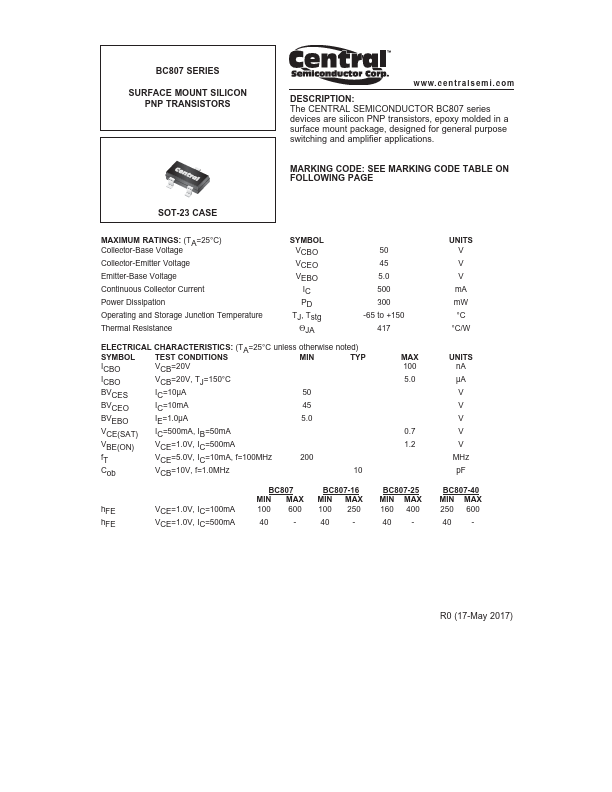

BC807 SERIES
SURFACE MOUNT SILICON PNP TRANSISTORS w w w. c e n t r a l s e m i . c o m
DESCRIPTION: The CENTRAL SEMICONDUCTOR BC807 series devices are silicon PNP transistors, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.
MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE
SOT-23 CASE
MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance
SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA
50 45 5.0 500 300 -65 to +150 417
ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise...
