Datasheet Summary

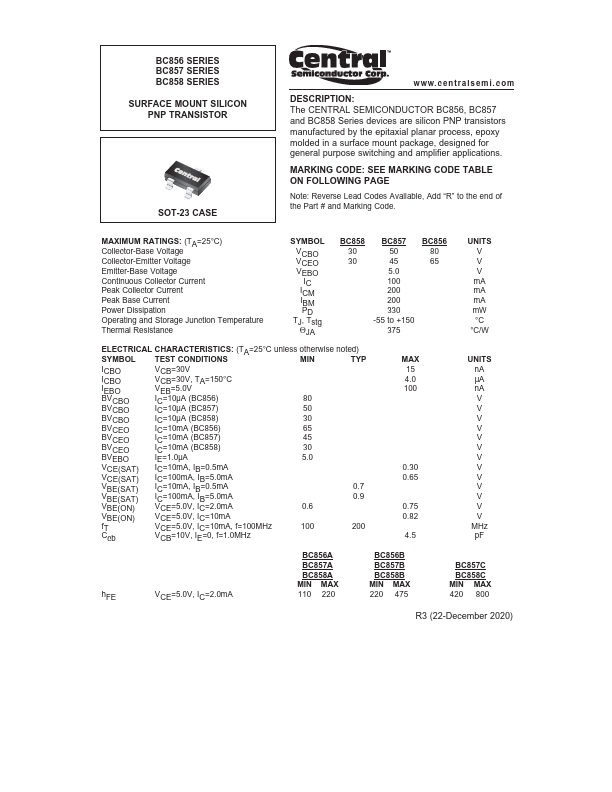

BC856 SERIES BC857 SERIES BC858 SERIES SURFACE MOUNT SILICON PNP TRANSISTOR
SOT-23 CASE w w w. c e n t r a l s e m i . c o m
DESCRIPTION: The CENTRAL SEMICONDUCTOR BC856, BC857 and BC858 Series devices are silicon PNP transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications.

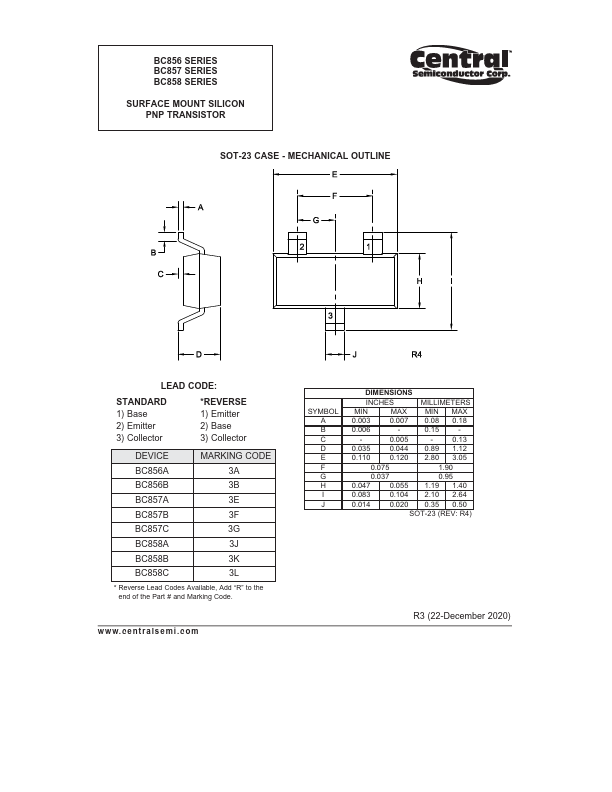

MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE
Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Collector Current Peak Base Current...
