Surface Mount NPN Silicon Transistor
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BCX54-10 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 636.25 KB |
| Description | SURFACE MOUNT NPN SILICON TRANSISTOR |
| Datasheet | BCX54-10 BCX54 Datasheet (PDF) |
|
|

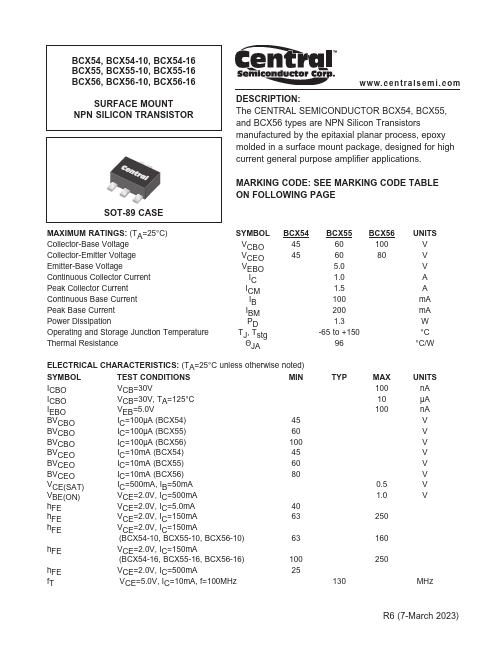

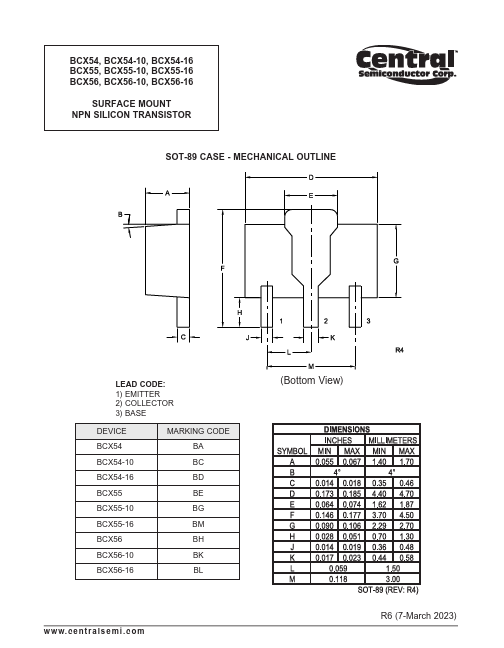

The CENTRAL SEMICONDUCTOR BCX54, BCX55, and BCX56 types are NPN Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current general purpose amplifier applications. SOT-89 CASE MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE MAXIMUM RATINGS:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BCX54-10 | 45V 1A NPN medium power transistors | nexperia |
 |
BCX54-10 | NPN Silicon AF Transistors | GME |
|
BCX54-10-Q | 1A NPN medium power transistors | nexperia |
