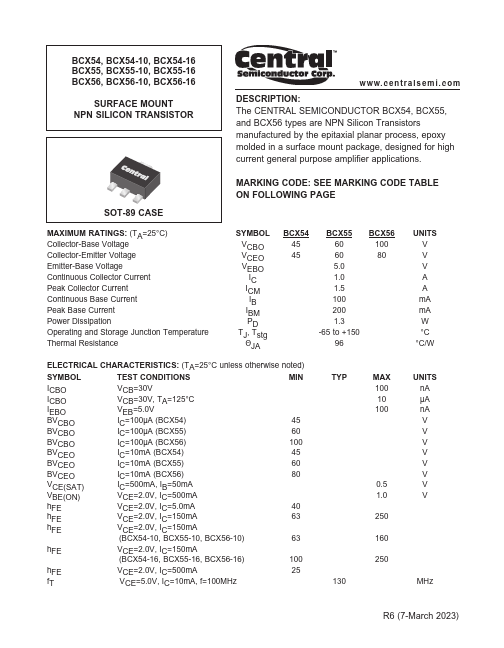

BCX55-10
DESCRIPTION
: The CENTRAL SEMICONDUCTOR BCX54, BCX55, and BCX56 types are NPN Silicon Transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for high current general purpose amplifier applications.
SOT-89 CASE

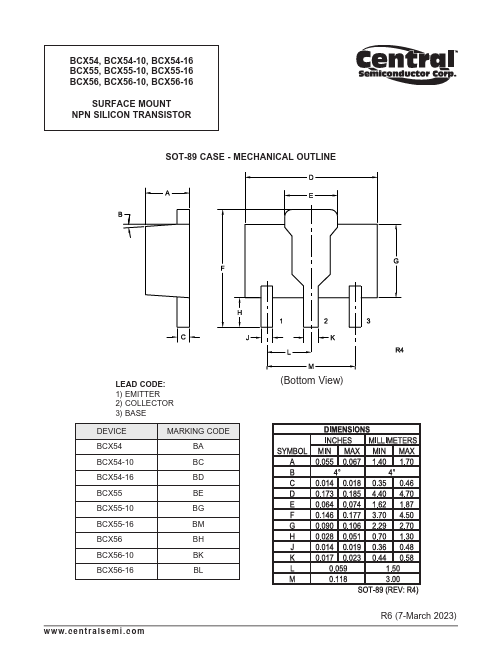

MARKING CODE: SEE MARKING CODE TABLE ON FOLLOWING PAGE
MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Collector Current Continuous Base Current Peak Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance
SYMBOL BCX54 BCX55 BCX56 UNITS
VCBO
VCEO
VEBO 5.0 V
1.0 A
1.5 A
100 m A
200 m A
1.3 W
TJ, Tstg
-65 to +150
°C
ΘJA 96°C/W
ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
ICBO ICBO IEBO BVCBO BVCBO BVCBO BVCEO BVCEO BVCEO VCE(SAT) VBE(ON) h FE h FE h FE
VCB=30V...
