CZT2955 - SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS

Datasheet Summary

Description

The CENTRAL SEMICONDUCTOR CZT2955 and CZT3055 types are surface mount epoxy molded complementary silicon transistors manufactured by the epitaxial base process, designed for surface mounted power amplifier applications up to 6.0 amps.

📥 Download Datasheet

Datasheet preview – CZT2955

Datasheet Details

Part number CZT2955
Manufacturer Central Semiconductor
File Size 301.16 KB
Description SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS
Datasheet download datasheet CZT2955 Datasheet

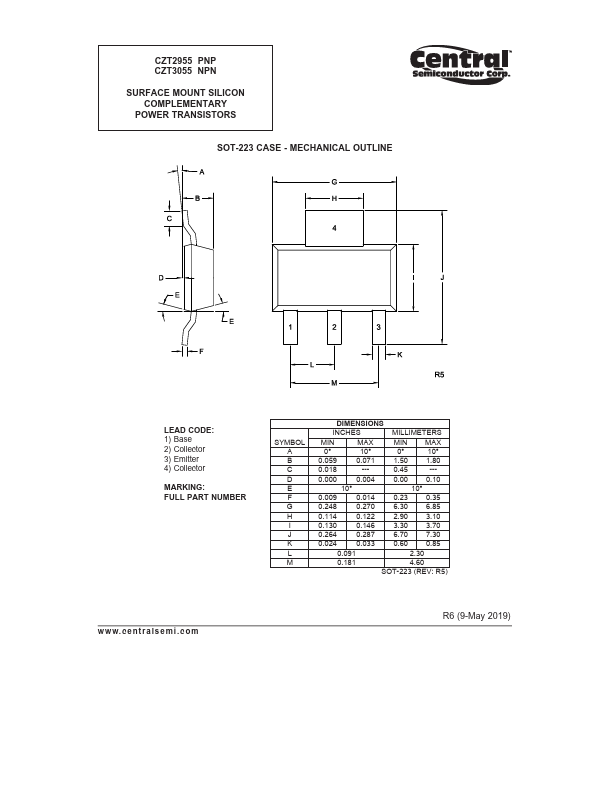

Additional preview pages of the CZT2955 datasheet.

📁 Similar Datasheet

  • CZT2955 - PNP Silicon Power Transistor (Kexin)
  • CZT2955 - TRANSISTOR (TY Semiconductor)
  • CZT2907A - PNP SILICON TRANSISTOR (Central Semiconductor Corp)
  • CZT2000 - NPN SILICON EXTREMELY HIGH VOLTAGE DARLINGTON TRANSISTOR (Central Semiconductor Corp)
  • CZT2000 - PNP Silicon Extremely High Voltage Darlington Transistor (Kexin)
  • CZT2222 - NPN SILICON TRANSISTOR (Central Semiconductor Corp)
  • CZT122 - NPN Transistor (JCST)
  • CZT122 - NPN Transistor (Guangdong Kexin Industrial)
  • CZT122 - TRANSISTOR (TY Semiconductor)
  • CZT127 - PNP Transistor (JCST)
Other Datasheets by Central Semiconductor
  • CZT2222A - SURFACE MOUNT SILICON NPN TRANSISTOR
  • CZT2680 - SURFACE MOUNT NPN SILICON TRANSISTOR
  • CZT122 - TRANSISTOR
  • CZT127 - TRANSISTOR
  • CZT3055 - SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS
  • CZT3120 - SURFACE MOUNT NPN SILICON TRANSISTOR
  • CZT3150 - SURFACE MOUNT NPN SILICON TRANSISTOR
  • CZT5401E - SURFACE MOUNT PNP SILICON TRANSISTOR

Full PDF Text Transcription

Click to expand full text

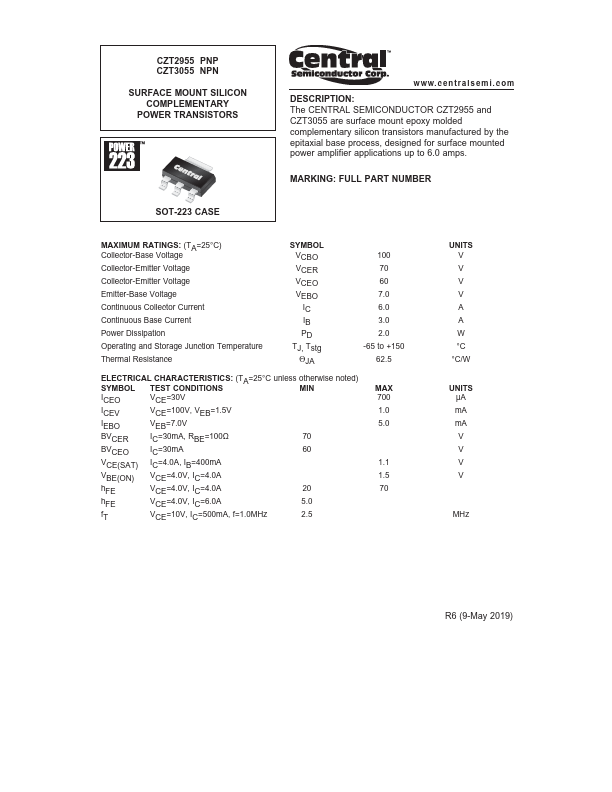

CZT2955 PNP CZT3055 NPN SURFACE MOUNT COMPLEMENTARY SILICON POWER TRANSISTORS w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR CZT2955 and CZT3055 types are surface mount epoxy molded complementary silicon transistors manufactured by the epitaxial base process, designed for surface mounted power amplifier applications up to 6.0 amps. MARKING: FULL PART NUMBER SOT-223 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Continuous Base Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCER VCEO VEBO IC IB PD TJ, Tstg ΘJA 100 70 60 7.0 6.0 3.0 2.0 -65 to +150 62.
