CSC0101A
Description
PS/2 data for mouse PS/2 clock for mouse PS/2 clock for keyboard PS/2 data for keyboard External reset Test input Mode selection input 1 Power supply Crystal/Ceramic resonator out Crystal/Ceramic resonator in Fo.

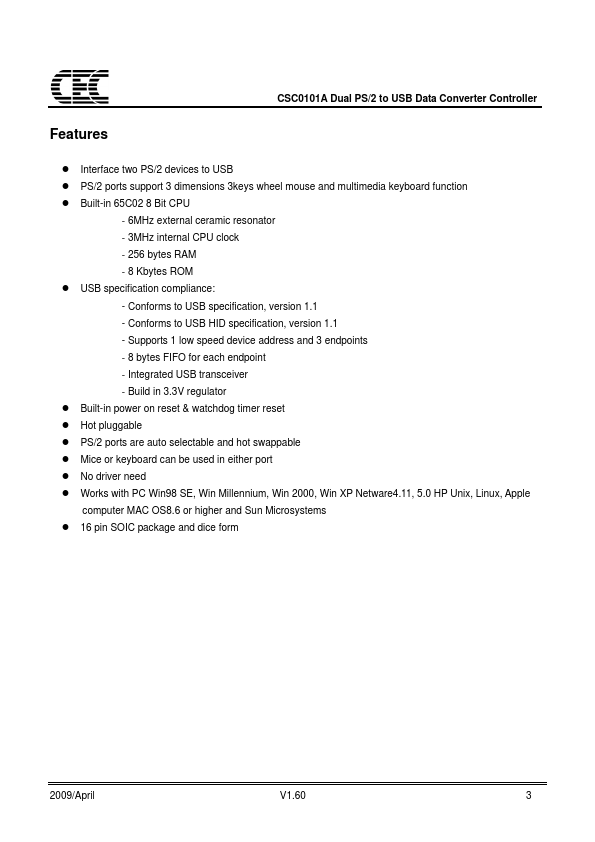

Key Features
- PS/2 ports support 3 dimensions 3keys wheel mouse and multimedia keyboard function
- Built-in 65C02 8 Bit CPU
- 6MHz external ceramic resonator
- 3MHz internal CPU clock
- 256 bytes RAM
- 8 Kbytes ROM
- USB specification pliance
- 8 bytes FIFO for each endpoint
- Integrated USB transceiver
- Build in 3.3V regulator
